1776296 Series

Catalog

CONN TERM STRIP 7CIRC 0.394"

Part	Terminal Screw Material	Material Flammability Rating	Voltage Rating	Current Rating (Amps)	Color	Terminal Screw Finish	Bottom Termination	Wire Gauge [Max]	Wire Gauge [Min]	Number of Circuits	Pitch [x]	Pitch [x]	Mounting Type	Terminal Block Type	Material - Insulation	Barrier Type	Number of Rows	Top Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Wire Entries

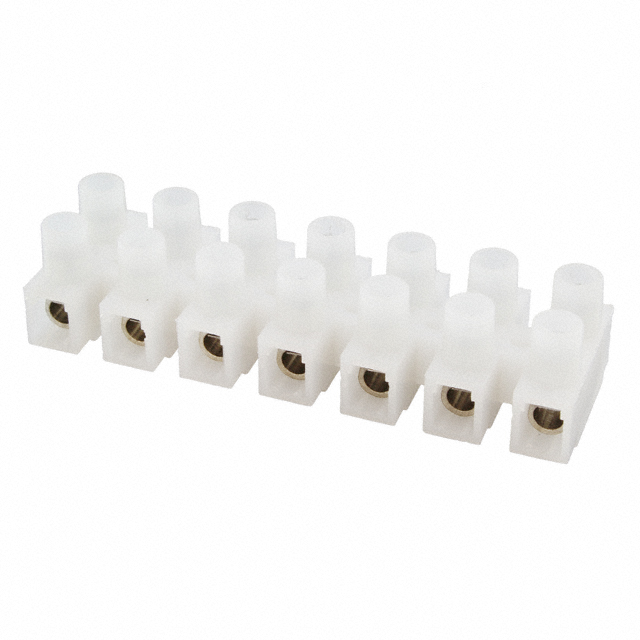

TE Connectivity Raychem Cable Protection 1776296-7	Steel	UL94 V-2	250 VDC	30 A	Natural	Non-Hexavalent Chromate Zinc	Closed	24 AWG	10 AWG	7	0.394 in	10 mm	Chassis Panel	Eurostyle Terminal Strip	Polyamide (PA66) Nylon 6/6	Enclosed	2	Screws	-35 °C	100 °C	14
TE Connectivity Raychem Cable Protection 1776296-9	Steel	UL94 V-2	250 VDC	30 A	Natural	Non-Hexavalent Chromate Zinc	Closed	24 AWG	10 AWG		0.394 in	10 mm	Chassis Panel	Eurostyle Terminal Strip	Polyamide (PA66) Nylon 6/6	Enclosed	2	Screws	-35 °C	100 °C	18
TE Connectivity Raychem Cable Protection 1776296-2	Steel	UL94 V-2	250 VDC	30 A	Natural	Non-Hexavalent Chromate Zinc	Closed	24 AWG	10 AWG	2	0.394 in	10 mm	Chassis Panel	Eurostyle Terminal Strip	Polyamide (PA66) Nylon 6/6	Enclosed	2	Screws	-35 °C	100 °C	4
