CQB150 Series

Isolated DC/DC Converters - Through Hole

Manufacturer: Cincon Electronics Co. LTD

Catalog

Isolated DC/DC Converters - Through Hole

Catalog

Isolated DC/DC Converters - Through Hole

Part	Type	Voltage - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Efficiency	Current - Output (Max) [Max]	Approval Agency	Applications	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Power (Watts)	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Isolation	Control Features	Features	Standard Number	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Supplier Device Package

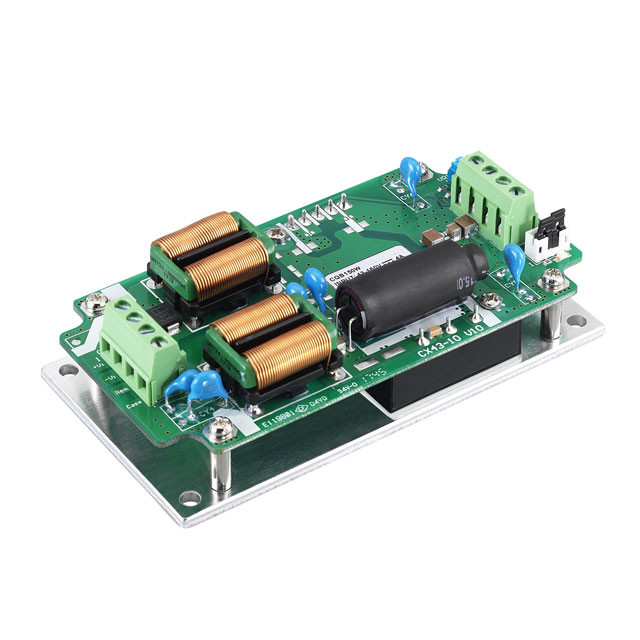

Cincon Electronics Co. LTD CQB150W-110S12-CMFC	Open Frame	12 V	116.8 mm	32 mm	1.26 "	61 mm	2.4 in	4.6 "	91 %	12.5 A	CE	ITE (Commercial) Railway	160 V	105 C	-40 °C	1	150 W	Chassis Mount	43 V	3000 V

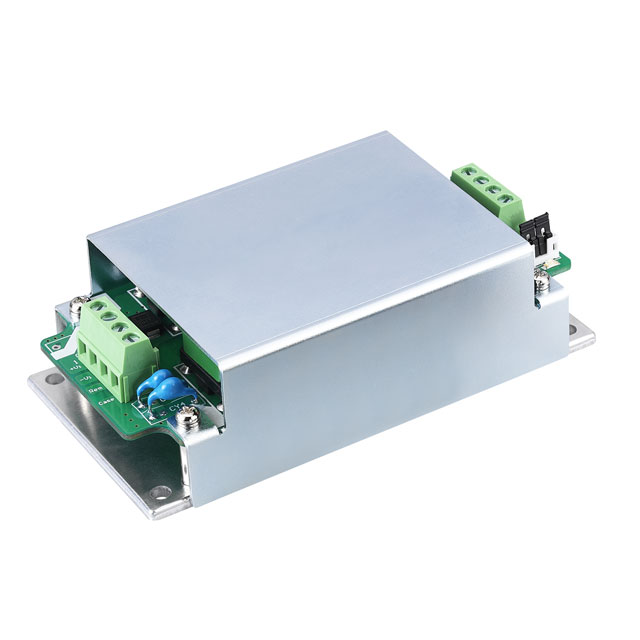

Cincon Electronics Co. LTD CQB150W-110S28-CMFD	Enclosed	28 V	116.8 mm	34.2 mm	1.35 in	63.4 mm	2.49 in	4.6 "	88 %	5.4 A	CE	ITE (Commercial) Railway	160 V	105 C	-40 °C	1	151 W	Chassis Mount	43 V	3000 V

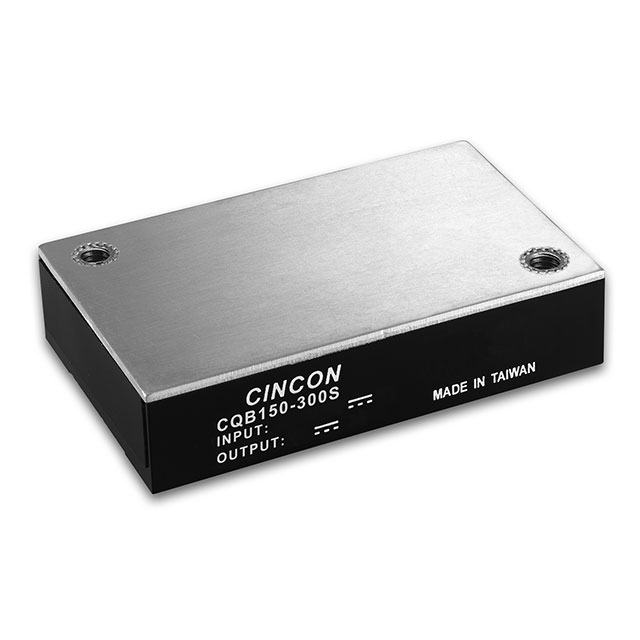

Cincon Electronics Co. LTD CQB150-300S48	Isolated Module	48 V	57.9 mm		0.5 in		1.45 in	2.28 "	89 %	3.2 A	CE cURus	ITE (Commercial)	425 V	105 C	-40 °C	1	154 W	Through Hole	180 V	3000 V	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	60950-1	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-48S48	Isolated Module	48 V	57.9 mm		0.5 in		1.45 in	2.28 "	91.5 %	3.2 A	CB CE cURus	ITE (Commercial) Railway	75 V	105 C	-40 °C	1	154 W	Through Hole	18 V	2250 VDC	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	50155 60950-1	12.7 mm	36.8 mm	Module	Module
Cincon Electronics Co. LTD CQB150-300S28	Isolated Module	28 V	57.9 mm		0.5 in		1.45 in	2.28 "	88.5 %	5.4 A	CE cURus	ITE (Commercial)	425 V	105 C	-40 °C	1	151 W	Through Hole	180 V	3000 V	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	60950-1	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-110S05-CMFD	Enclosed	5 V	116.8 mm	34.2 mm	1.35 in	63.4 mm	2.49 in	4.6 "	89 %	30 A	CE	ITE (Commercial) Railway	160 V	105 C	-40 °C	1	150 W	Chassis Mount	43 V	3000 V
Cincon Electronics Co. LTD CQB150-300S28N	Isolated Module	28 V	57.9 mm		0.5 in		1.45 in	2.28 "	88.5 %	5.4 A	CE cURus	ITE (Commercial)	425 V	105 C	-40 °C	1	151 W	Through Hole	180 V	3000 V	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	60950-1	12.7 mm	36.8 mm
Cincon Electronics Co. LTD CQB150W-24S48	Isolated Module	48 V	57.9 mm		0.5 in		1.45 in	2.28 "	90.5 %	3.2 A	CB CE cURus	ITE (Commercial) Railway	36 V	105 C	-40 °C	1	154 W	Through Hole	9 V	2250 VDC	Active High Enable	OCP OTP OVP Remote On/Off SCP UVLO	50155 60950-1	12.7 mm	36.8 mm	Module	Module

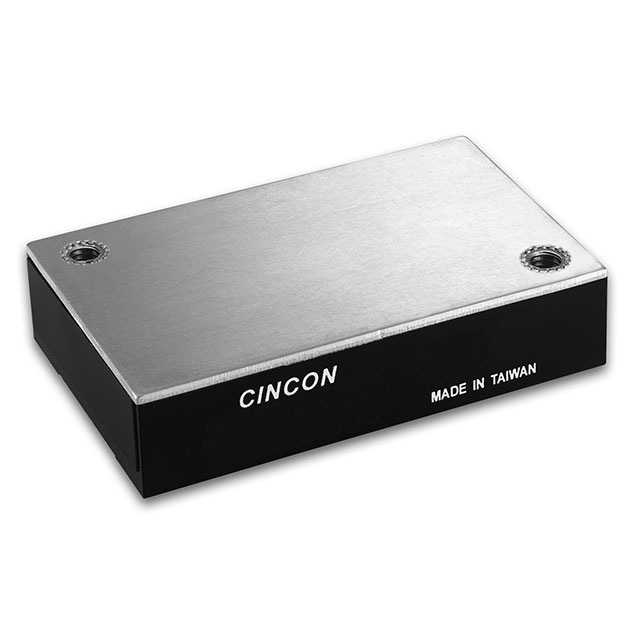

Cincon Electronics Co. LTD CQB150W-110S12N	Isolated Module	12 V	57.9 mm		0.5 in		1.45 in	2.28 "	92 %	12.5 A	CB CE cURus	ITE (Commercial) Railway	160 V	105 C	-40 °C	1	150 W	Through Hole	43 V	3000 V	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	50155 60950-1	12.7 mm	36.8 mm	Module	Module
Cincon Electronics Co. LTD CQB150-300S05N	Isolated Module	5 V	57.9 mm		0.5 in		1.45 in	2.28 "	86 %	30 A	CE cURus	ITE (Commercial)	425 V	105 C	-40 °C	1	150 W	Through Hole	180 V	3000 V	Active Low Enable	OCP OTP OVP Remote On/Off SCP UVLO	60950-1	12.7 mm	36.8 mm
