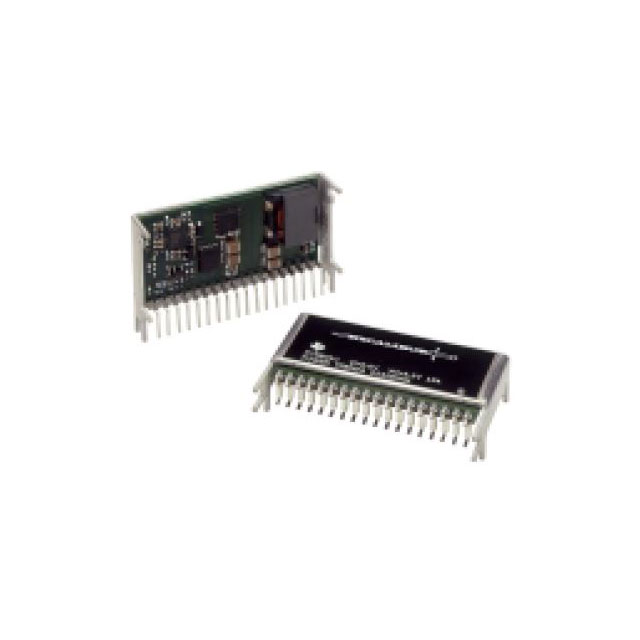

PT5813 Series
Manufacturer: Texas Instruments
Beta
⌘K
DC DC CONVERTER 1.8V 20A
| Part | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Features | Mounting Type | Type | Number of Outputs | Voltage - Input (Max) [Max] | Current - Output (Max) [Max] | Package / Case | Applications | Voltage - Input (Min) [Min] | Voltage - Output 1 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 7.9 mm | 2 in | 50.8 mm | 30.2 mm | 1.19 " | 0.31 in | 85 °C | -40 °C | 90 % | OCP OTP Remote On/Off SCP | Surface Mount | Non-Isolated PoL Module | 1 | 3.65 V | 20 A | 18-SMD Module | ITE (Commercial) | 2.95 V | 1.8 V |
