TPS630702 Series

Wide input voltage (2V-16V) buck-boost converter

Catalog

Wide input voltage (2V-16V) buck-boost converter

Part	Function	Voltage - Input (Max) [Max]	Current - Output	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Mounting Type	Output Configuration	Topology	Package / Case	Output Type	Voltage - Input (Min) [Min]	Frequency - Switching	Number of Outputs	Voltage - Output (Max) [Max]	Voltage - Output (Min/Fixed)	Supplied Contents	Regulator Topology	Main Purpose	Voltage - Output	Outputs and Type	Outputs and Type	Utilized IC / Part	Voltage - Input [Min]	Voltage - Input [Max]	Board Type	Output Type

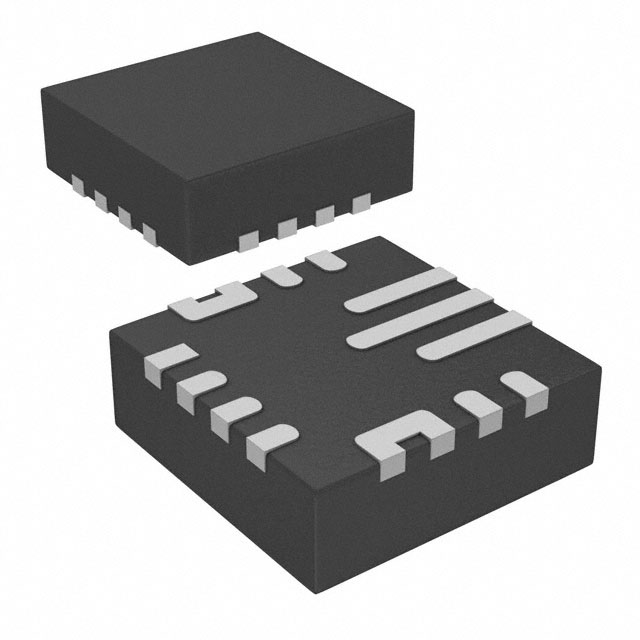

Texas Instruments TPS630702RNMR	Step-Up/Step-Down	16 V	2 A	-40 °C	125 ¯C	15-VQFN-HR (3x2.5)	Surface Mount	Positive	Buck-Boost	15-PowerVFQFN	Adjustable	2 V	2.4 MHz	1	9 V	2.5 V

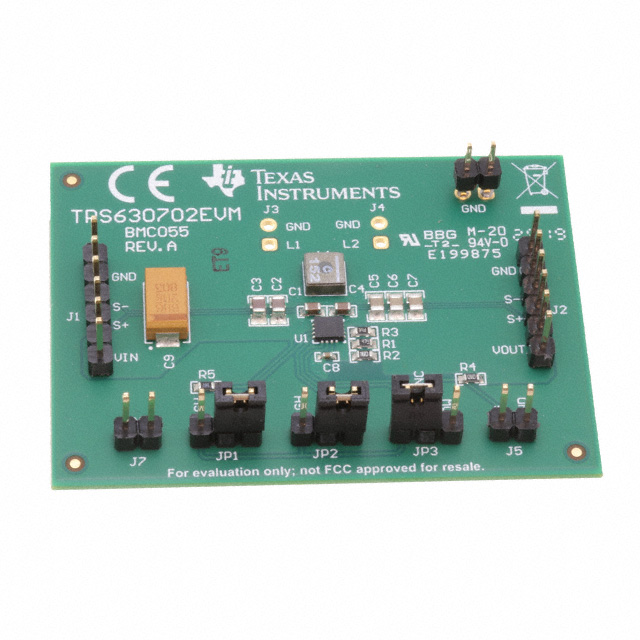

Texas Instruments TPS630702EVM			2 A										2.4 MHz				Board(s)	Buck-Boost	DC/DC Step Up or Down	5 V	Non-Isolated	1	TPS630702	2 V	16 V	Fully Populated
Texas Instruments TPS63070RNMT	Step-Up/Step-Down	16 V	2 A	-40 °C	125 ¯C	15-VQFN-HR (3x2.5)	Surface Mount	Positive	Buck-Boost	15-PowerVFQFN	Adjustable	2 V	2.4 MHz	1	9 V	2.5 V
Texas Instruments TPS630701RNMT	Step-Up/Step-Down	16 V	2 A	-40 °C	125 ¯C	15-VQFN-HR (3x2.5)	Surface Mount	Positive	Buck-Boost	15-PowerVFQFN		2 V	2.4 MHz	1		5 V											1.81 mOhm
Texas Instruments TPS63070RNMR	Step-Up/Step-Down	16 V	2 A	-40 °C	125 ¯C	15-VQFN-HR (3x2.5)	Surface Mount	Positive	Buck-Boost	15-PowerVFQFN	Adjustable	2 V	2.4 MHz	1	9 V	2.5 V

Catalog

Wide input voltage (2V-16V) buck-boost converter

Key Features

• Input Voltage Range: 2.0 V to 16 VOutput Voltage Range: 2.5 V to 9 VUp to 95% Efficiency+/- 1% dc accuracy in PWM mode+3% / -1% dc accuracy in PFM mode2 A Output Current in Buck Mode2 A Output Current in Boost Mode(VIN = 4 V; Vout = 5 V)Precise ENABLE input allowsuser defined undervoltage lockoutexact sequencingAutomatic Transition Between Step Down and Boost ModeTypical Device Quiescent Current: 50 µAFixed and Adjustable Output Voltage OptionsOutput Discharge OptionPower Save Mode for Improved Efficiency at Low Output PowerForced Fixed Frequency Operation at 2.4 MHz and Synchronization OptionPower Good OutputVSEL simply allows output voltage changeLoad Disconnect During ShutdownOvertemperature ProtectionInput / Output Overvoltage ProtectionAvailable in QFN PackageInput Voltage Range: 2.0 V to 16 VOutput Voltage Range: 2.5 V to 9 VUp to 95% Efficiency+/- 1% dc accuracy in PWM mode+3% / -1% dc accuracy in PFM mode2 A Output Current in Buck Mode2 A Output Current in Boost Mode(VIN = 4 V; Vout = 5 V)Precise ENABLE input allowsuser defined undervoltage lockoutexact sequencingAutomatic Transition Between Step Down and Boost ModeTypical Device Quiescent Current: 50 µAFixed and Adjustable Output Voltage OptionsOutput Discharge OptionPower Save Mode for Improved Efficiency at Low Output PowerForced Fixed Frequency Operation at 2.4 MHz and Synchronization OptionPower Good OutputVSEL simply allows output voltage changeLoad Disconnect During ShutdownOvertemperature ProtectionInput / Output Overvoltage ProtectionAvailable in QFN Package

Description

The TPS6307x is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over a wide load current range. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 2.5 mm x 3 mm QFN package. The TPS6307x is a high efficiency, low quiescent current buck-boost converter suitable for applications where the input voltage can be higher or lower than the output voltage. Output currents can go as high as 2 A in boost mode and in buck mode. The buck-boost converter is based on a fixed frequency, pulse-width-modulation (PWM) controller using synchronous rectification to obtain maximum efficiency. At low load currents, the converter enters Power Save Mode to maintain high efficiency over a wide load current range. The converter can be disabled to minimize battery drain. During shutdown, the load is disconnected from the battery. The device is available in a 2.5 mm x 3 mm QFN package.
