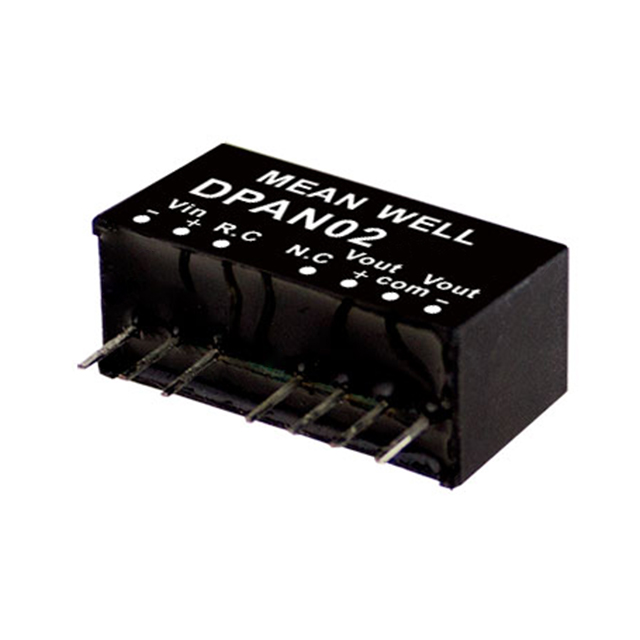

DPAN02 Series

Catalog

DC DC CONVERTER +/-5V 2W

Part	Package / Case	Voltage - Output 2	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Type	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Voltage - Input (Min) [Min]	Voltage - Isolation	Power (Watts)	Number of Outputs	Features	Voltage - Output 1	Efficiency	Current - Output (Max)	Current - Output (Max)
MEAN WELL USA Inc. DPAN02E-05	8-SIP Module 7 Leads	-5 V	9 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	4.5 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	5 V	78 %
MEAN WELL USA Inc. DPAN02C-15	8-SIP Module 7 Leads	-15 V	75 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	36 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	15 V	84 %	67 mA	67 mA
MEAN WELL USA Inc. DPAN02B-05	8-SIP Module 7 Leads	-5 V	36 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	18 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	5 V	79 %
MEAN WELL USA Inc. DPAN02E-12	8-SIP Module 7 Leads	-12 V	9 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	4.5 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	12 V	80 %	83 mA	83 mA
MEAN WELL USA Inc. DPAN02C-05	8-SIP Module 7 Leads	-5 V	75 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	36 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	5 V	78 %
MEAN WELL USA Inc. DPAN02B-12	8-SIP Module 7 Leads	-12 V	36 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	18 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	12 V	81 %	83 mA	83 mA
MEAN WELL USA Inc. DPAN02A-15	8-SIP Module 7 Leads	-15 V	18 V	Through Hole	0.36 in	0.44 in	0.86 "	21.8 mm	9.2 mm	11.1 mm	Isolated Module	90 °C	-40 °C	ITE (Commercial)	9 V	1.5 kV	2 W	2	OCP Remote On/Off SCP UVLO	15 V	83 %	67 mA	67 mA
