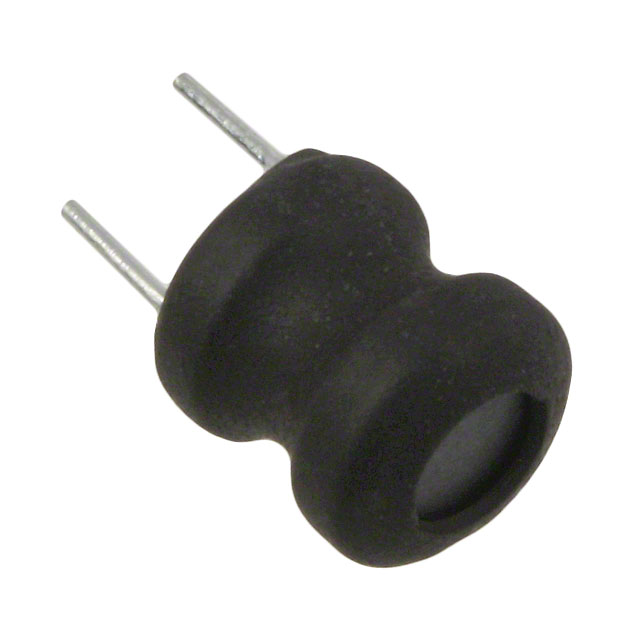

RLB0912 Series

Catalog

INDUCTOR,FERRITE,68UH,10+% TOL,10-% TOL ROHS COMPLIANT: YES

Part	Material - Core	DC Resistance (DCR) [Max]	Shielding	Inductance Frequency - Test	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Current Rating (Amps)	Tolerance	Mounting Type	Frequency - Self Resonant	Q @ Freq	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Current - Saturation (Isat)	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. RLB0912-680KL	Ferrite	280 mOhm	Unshielded	1 kHz	11 mm	0.433 in	1.35 A	10 %	Through Hole	9 MHz	2.52 MHz 35	125 °C	-40 C	Radial Vertical Cylinder	68 µH	8.7 mm	0.343 in	Drum Core Wirewound
Bourns Inc. RLB0912-221KL	Ferrite	720 mOhm	Unshielded	1 kHz	11 mm	0.433 in	800 mA	10 %	Through Hole	4.5 MHz	30 796 kHz	125 °C	-40 C	Radial Vertical Cylinder	220 µH	8.7 mm	0.343 in	Drum Core Wirewound	800 mA
Bourns Inc. RLB0912-4R7ML	Ferrite		Unshielded	1 kHz	11 mm	0.433 in	4 A	20 %	Through Hole	41 MHz	7.96 MHz 30	125 °C	-40 C	Radial Vertical Cylinder	4.7 ÁH	8.7 mm	0.343 in	Drum Core Wirewound	5 A
Bourns Inc. RLB0912-471KL	Ferrite	1.7 Ohm	Unshielded	1 kHz	11 mm	0.433 in	600 mA	10 %	Through Hole	2.9 MHz	25 796 kHz	125 °C	-40 C	Radial Vertical Cylinder	470 µH	8.7 mm	0.343 in	Drum Core Wirewound	520 mA
Bourns Inc. RLB0912-102KL	Ferrite	4.3 Ohm	Unshielded	1 kHz	11 mm	0.433 in	400 mA	10 %	Through Hole	1.9 MHz	55 252 kHz	125 °C	-40 C	Radial Vertical Cylinder	1 mH	8.7 mm	0.343 in	Drum Core Wirewound	350 mA
Bourns Inc. RLB0912-331KL	Ferrite	1.1 Ohm	Unshielded	1 kHz	11 mm	0.433 in	700 mA	10 %	Through Hole	3.6 MHz	25 796 kHz	125 °C	-40 C	Radial Vertical Cylinder	330 µH	8.7 mm	0.343 in	Drum Core Wirewound	620 mA
Bourns Inc. RLB0912-1R0ML	Ferrite	10 mOhm	Unshielded	1 kHz	11 mm	0.433 in	6 A	20 %	Through Hole	88 MHz	7.96 MHz 30	125 °C	-40 C	Radial Vertical Cylinder	1 µH	8.7 mm	0.343 in	Drum Core Wirewound	8.1 A
Bourns Inc. RLB0912-1R5ML	Ferrite	8 mOhm	Unshielded	1 kHz	11 mm	0.433 in	6 A	20 %	Through Hole	78 MHz	7.96 MHz 30	125 °C	-40 C	Radial Vertical Cylinder	1.5 µH	8.7 mm	0.343 in	Drum Core Wirewound	8 A
Bourns Inc. RLB0912-330KL	Ferrite	140 mOhm	Unshielded	1 kHz	11 mm	0.433 in	1.7 A	10 %	Through Hole	13 MHz		125 °C	-40 C	Radial Vertical Cylinder	33 µH	8.7 mm	0.343 in	Drum Core Wirewound	2 A	45	2.52 MHz
Bourns Inc. RLB0912-3R3ML	Ferrite	18 mOhm	Unshielded	1 kHz	11 mm	0.433 in	4.5 A	20 %	Through Hole	50 MHz	7.96 MHz 30	125 °C	-40 C	Radial Vertical Cylinder	3.3 µH	8.7 mm	0.343 in	Drum Core Wirewound	6.5 A
