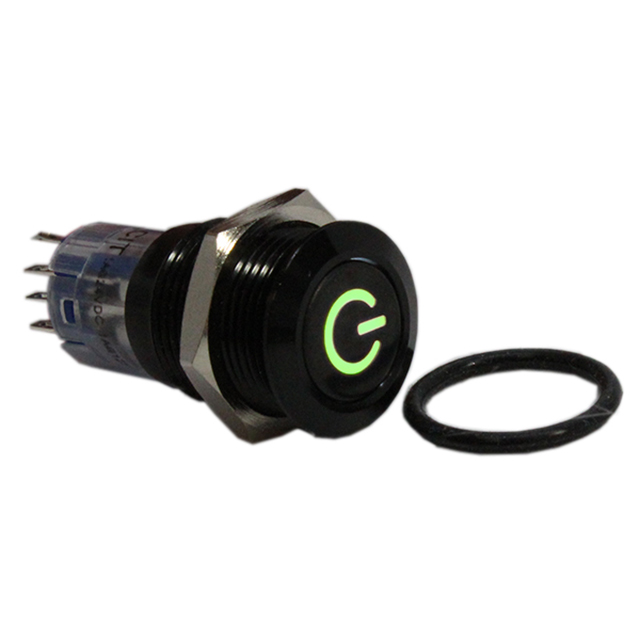

CH2LGB Series
Manufacturer: CIT Relay and Switch
Beta
⌘K
SWITCH PB DPDT 1A 125V
| Part | Electrical Life | Voltage Rating - AC | Switch Function | Mounting Type | Type | Current Rating (Amps) | Actuator Marking | Voltage Rating - DC | Panel Cutout Dimensions [diameter] | Ingress Protection | Termination Style | Color - Actuator/Cap | Operating Temperature [Min] | Operating Temperature [Max] | Illumination Type, Color | Actuator Type | Circuit |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CIT Relay and Switch | 30000 Cycles | 125 V | On-On | Panel Mount Front | Anti-Vandal Illuminated | 1 A | No Marking | 24 V | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Black | -25 °C | 70 °C | LED Red | Button Flush Round | DPDT |
 CIT Relay and Switch | 30000 Cycles | 125 V | On-On | Panel Mount Front | Anti-Vandal Illuminated | 1 A | No Marking | 24 V | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Black | -25 °C | 70 °C | Green LED | Button Flush Round | DPDT |
CIT Relay and Switch | 30000 Cycles | 125 V | On-On | Panel Mount Front | Anti-Vandal Illuminated | 1 A | No Marking | 24 V | 16 mm | IP67 - Dust Tight Waterproof | Solder Lug | Black | -25 °C | 70 °C | Green/Red LED | Button Flush Round | DPDT |
