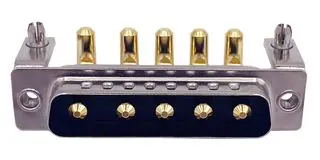

684M5W5 Series
Manufacturer: NorComp Inc.
Beta
⌘K
COMBO D-SUB CONN, PLUG, DB-5W5, TH ROHS COMPLIANT: YES
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Contact Material | Voltage Rating | Color | Material Flammability Rating | Number of Positions | Contact Finish Thickness | Mounting Type | Connector Style | Shell Material, Finish | Current Rating (Amps) | Contact Type | Flange Feature | Flange Feature | Contact Finish | Termination | Shell Size, Connector Layout [x] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Connector Type | Features | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NorComp Inc. | -55 C | 125 °C | Polybutylene Terephthalate (PBT) | Copper Alloy | 250 V | Black | UL94 V-0 | 5 | Flash | Board Edge Right Angle Through Hole | Combo D-Sub | Nickel Plated Steel | 40 A | Power | Housing/Shell | 4-40 | Gold | Solder | 3 | DB B | 5W5 | Plug Male Pins | Board Lock Grounding Indents Mounting Brackets | 1 |
