68797 Series

Catalog

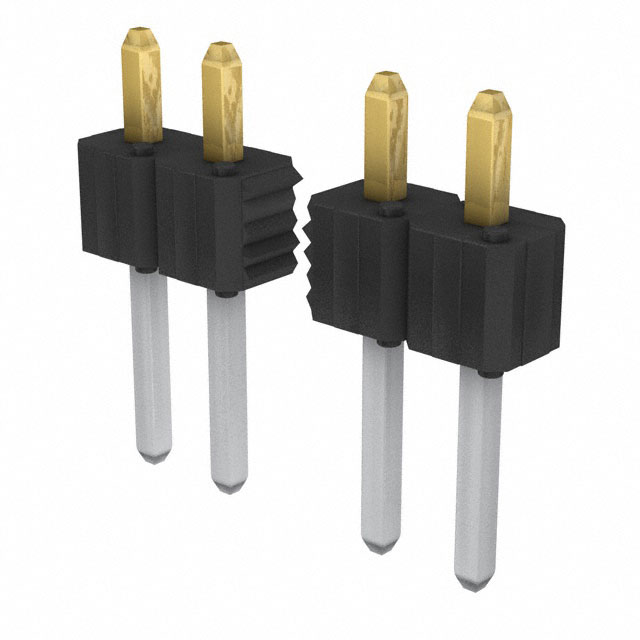

BERGSTIK II 100CC SR ST-STRAIGHT

Part	Number of Positions	Shrouding	Overall Contact Length	Overall Contact Length	Number of Rows	Insulation Height	Insulation Height	Contact Material	Voltage Rating	Contact Length - Post	Contact Length - Post	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Material Flammability Rating	Fastening Type	Insulation Color	Contact Finish - Mating	Contact Shape	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Type	Connector Type	Contact Length - Mating	Contact Length - Mating	Termination	Mounting Type	Number of Positions Loaded	Number of Positions
Amphenol ICC (FCI) 68797-135HLF	135	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-236HLF	36	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	15 µin	0.38 µm	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-104HLF	4	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-116HLF		Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All	16
Amphenol ICC (FCI) 68797-417HLF		Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black		Square	100 çin	2.54 çm	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-127HLF	27	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-124HLF	24	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-119HLF	19	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black	Gold or Gold GXT™	Square	30 Áin	0.76 Ám	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-418HLF	18	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black		Square	100 çin	2.54 çm	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
Amphenol ICC (FCI) 68797-434HLF	34	Unshrouded	0.413 in	10.49 mm	1	0.1 in	2.54 mm	Phosphor Bronze	110 VDC	5.4 mm	0.213 in	0.1 in	2.54 mm	5 A	UL94 V-0	Push-Pull	Black		Square	100 çin	2.54 çm	Male Pin	Header	0.1 in	2.54 mm	Solder	Through Hole	All
