LCD750 Series
Manufacturer: Panduit Corp
Beta
⌘K
CONN TERM RECT TONG 750 MCM #3/8
| Part | Contact Material | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Finish | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Stud/Tab Size | Wire Gauge | Wire Gauge | Mounting Type | Color | Width - Outer Edges [x] | Width - Outer Edges [x] | Terminal Style | Termination | Tab Thickness | Tab Thickness | Terminal Type | Insulation | Length - Overall [x] | Length - Overall [x] | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

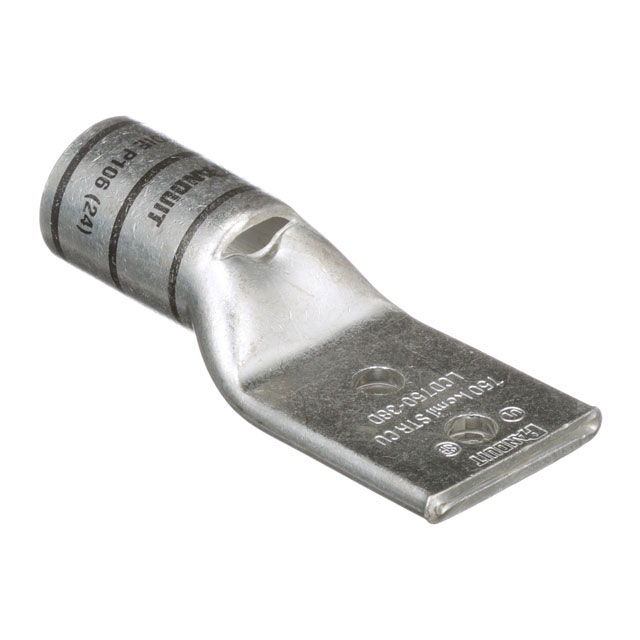

 Panduit Corp | Copper | 10.41 mm | 0.41 " | 1.3 in | 33.02 mm | Electro-Tin | 1.03 in | 26.16 mm | 0.375 Stud | 750 MCM | 750 MCM | Free Hanging (In-Line) | Black | 48.01 mm | 1.89 in | Two Stud Holes | Barrel Crimp | 0.26 in | 6.6 mm | Rectangular Tongue | Non-Insulated | 4.71 " | 119.63 mm | |

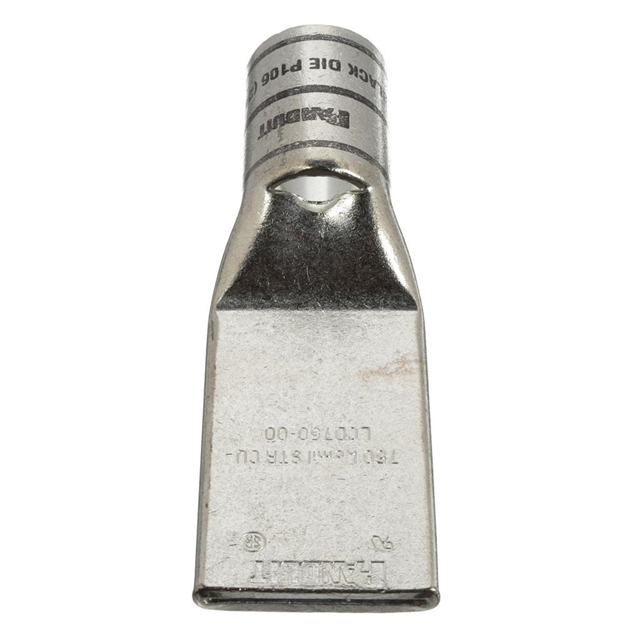

 Panduit Corp | Copper | 1.3 in | 33.02 mm | Electro-Tin | 1.03 in | 26.16 mm | 750 MCM | 750 MCM | Free Hanging (In-Line) | Black | 48.01 mm | 1.89 in | No Stud Hole | Barrel Crimp | 0.26 in | 6.6 mm | Rectangular Tongue | Non-Insulated | 5.65 in | 143.51 mm |
