LPPB052 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K
CONN HDR 10POS 0.05 GOLD SMD
| Part | Contact Material | Insulation Material | Contact Finish Thickness - Post | Contact Shape | Fastening Type | Mounting Type | Material Flammability Rating | Contact Finish - Mating | Termination | Contact Finish Thickness - Mating | Number of Positions Loaded | Operating Temperature [Max] | Operating Temperature [Min] | Contact Type | Number of Positions | Number of Rows [custom] | Row Spacing - Mating | Row Spacing - Mating | Contact Finish - Post | Insulation Color | Features | Insulation Height | Insulation Height | Connector Type | Pitch - Mating | Pitch - Mating | Contact Length - Post | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

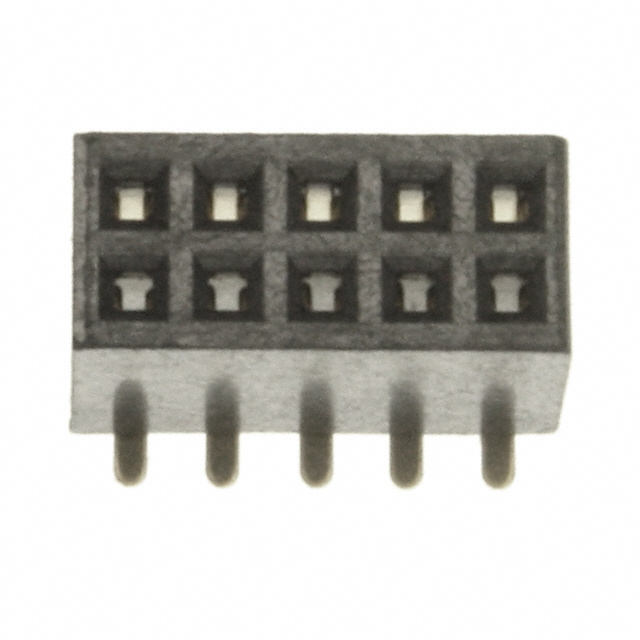

 Sullins Connector Solutions | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Square | Push-Pull | Surface Mount | UL94 V-0 | Gold | Solder | Flash | All | 125 °C | -40 C | Female Socket | 10 | 2 | 0.05 in | 1.27 mm | Gold | Black | Board Guide | 4.65 mm | 0.183 in | Header Top or Bottom Entry | 1.27 mm | 0.05 in | ||
 Sullins Connector Solutions | Phosphor Bronze | Liquid Crystal Polymer (LCP) | Flash | Square | Push-Pull | Through Hole | UL94 V-0 | Gold | Solder | Flash | All | 125 °C | -40 C | Female Socket | 10 | 2 | 0.05 in | 1.27 mm | Gold | Black | 4.5 mm | 0.177 in | Header | 1.27 mm | 0.05 in | 0.118 in | 3 mm |
