H3182 Series
Manufacturer: Harwin Inc.
Beta
⌘K

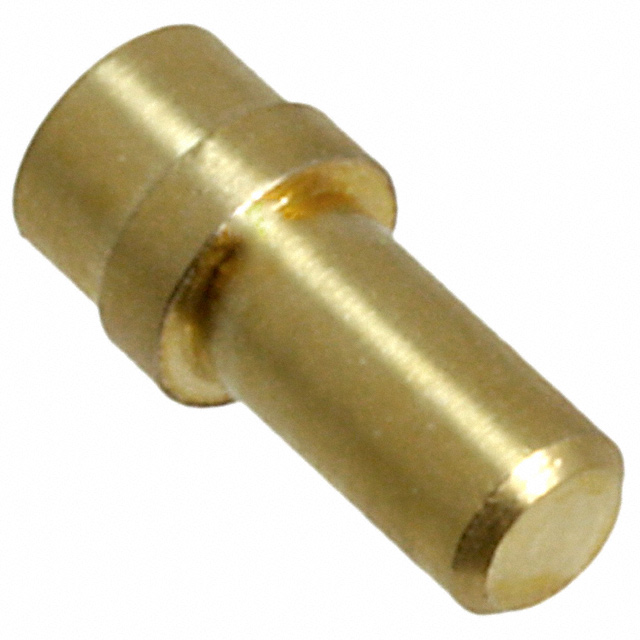

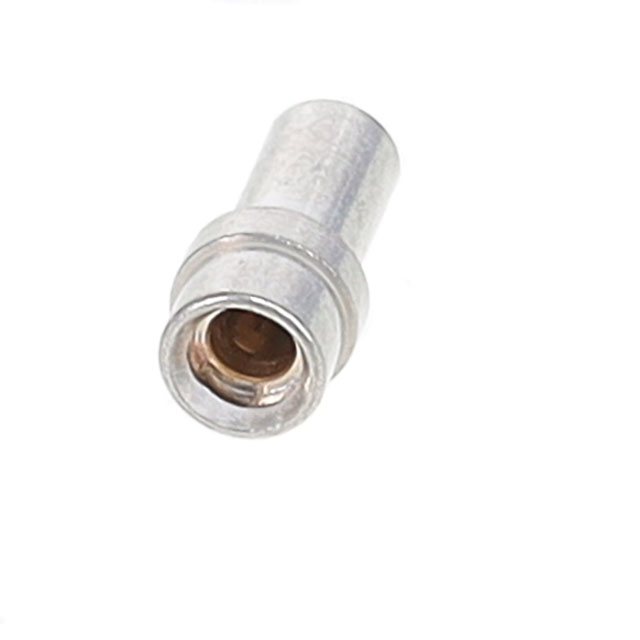

CONN PIN RCPT .035-.041 SOLDER
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Insertion Force [Max] | Insertion Force [Min] | Contact Finish Thickness | Contact Finish Thickness | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Accepts Pin Diameter [Max] | Accepts Pin Diameter [Min] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Tail Type | Length - Overall [x] | Length - Overall [x] | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | 5.9 µin | 0.15 µm | Beryllium Copper | 2.67 mm | 0.105 in | Gold | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " | 1.91 mm | 2.01 mm | 0.079 in | 0.075 " | No Tail | 0.222 in | 5.65 mm | Solder |
 Harwin Inc. | -55 C | 125 °C | 9 N | 3 N | 5.9 µin | 0.15 µm | Beryllium Copper | 2.67 mm | 0.105 in | Gold | 1.05 mm | 0.89 mm | 0.041 " | 0.035 " | 1.91 mm | 2.01 mm | 0.079 in | 0.075 " | No Tail | 0.222 in | 5.65 mm | Solder |
