BAS21TMR6 Series

High Voltage Switching Diode, 250 V

Catalog

High Voltage Switching Diode, 250 V

Part	Voltage - DC Reverse (Vr) (Max) [Max]	Speed	Speed	Voltage - Forward (Vf) (Max) @ If	Package / Case	Supplier Device Package	Current - Reverse Leakage @ Vr	Diode Configuration	Technology	Reverse Recovery Time (trr)	Current - Average Rectified (Io) (per Diode)	Mounting Type
ON Semiconductor NSVBAS21TMR6T2G	250 V	Any Speed	200 mA	1.25 V	SC-74 SOT-457	SC-74	100 nA	3 Independent	Standard	50 ns	200 mA	Surface Mount

Catalog

High Voltage Switching Diode, 250 V

Key Features

• Three BAS21 diodes in a SC-74 package.

• NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AECQ101Qualified and PPAP Capable

• These devices are Pb-free, Halogen free/BFR free and are RoHS compliant.

Description

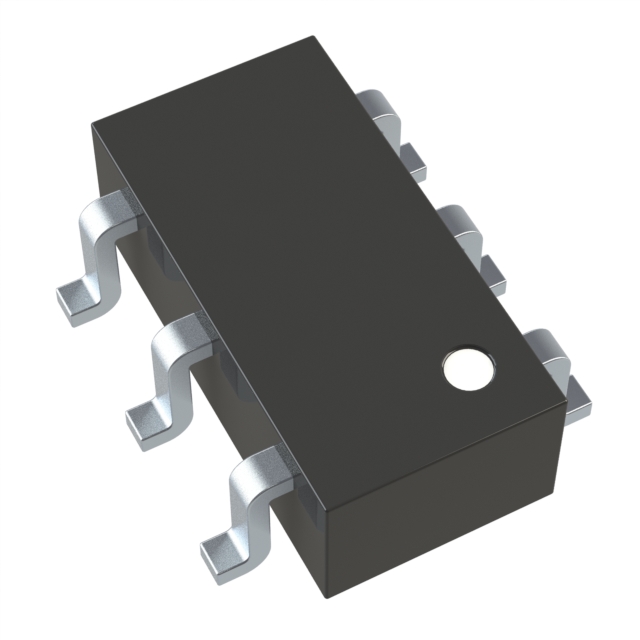

The BAS21TMR6T1G device houses three high-voltage switching diodes in a SC-74 surface mount package. This device is ideal for low-power surface mount applications where board space is at a premium.
