VBA90 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K

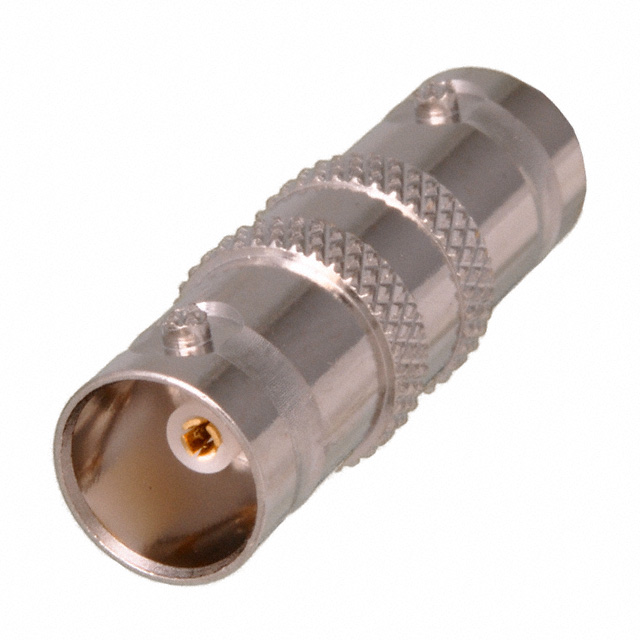

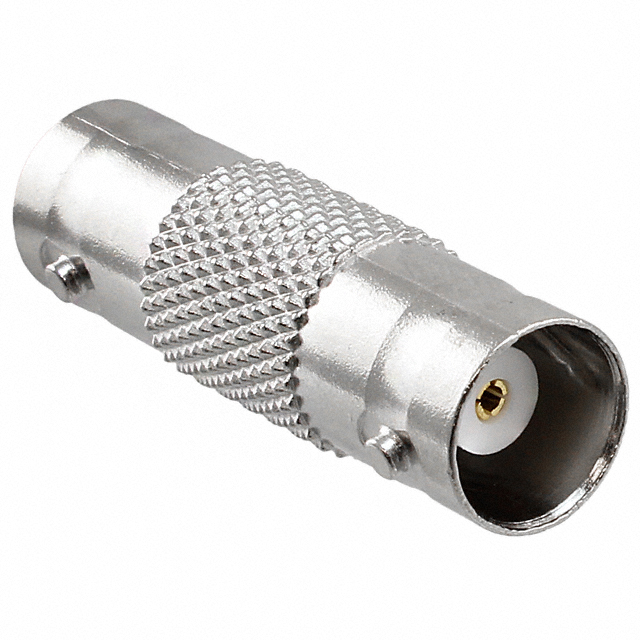

COAX ADAPT BNC TO BNC
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Material | Body Finish | Body Material | Dielectric Material | Mating Cycles | Convert From (Adapter End) | Adapter Series | Style | Convert To (Adapter End) | Center Gender | Center Contact Plating | Mounting Type | Adapter Type | Frequency - Max [Max] | Impedance | Fastening Type | Conversion Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | -55 C | 85 °C | Brass | Nickel | Brass | Polyoxymethylene (POM) | 500 | BNC Jack Female Socket | BNC to BNC | Straight | BNC Jack Female Socket | Female to Female | Gold | Free Hanging (In-Line) | Jack to Jack | 4 GHz | 50 Ohms | Bayonet Lock | Same Series |
 Cinch Connectivity Solutions | -55 C | 85 °C | Brass | Nickel | Brass | Polyoxymethylene (POM) | 500 | BNC Jack Female Socket | BNC to BNC | Straight | BNC Jack Female Socket | Female to Female | Gold | Free Hanging (In-Line) | Jack to Jack | 1 GHz | 75 Ohms | Bayonet Lock | Same Series |
