ASJ-203 Series
Manufacturer: Adam Tech
Beta
⌘K
AUDIO JACK, WATERPROOF
| Part | Body Color | Contact Material - Plating | Current Rating (Amps) | Mating Length/Depth | Mating Length/Depth | Voltage - Rated | Contact Material | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Signal Lines | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Internal Switch(s) | Connector Type | Gender | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Mounting Type | Termination | Shielding | Thread Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

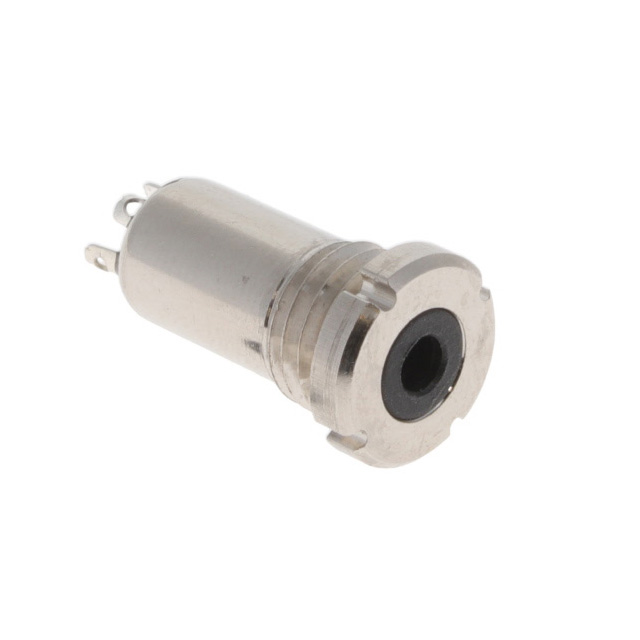

 Adam Tech | Black | Silver | 0.5 A | 11 mm | 0.433 in | 30 V | Steel Alloy | Polyamide (PA10T) Nylon 10T | -20 ░C | 70 °C | 4 | 4 | Stereo (4 Conductor TRRS) | 2.5 mm | 0.094 " | 3 /32" | Phone Jack | Female | 2.6 mm | 0.102 in | Mounting Hardware | Panel Mount | Solder Eyelet(s) | Unshielded | ||

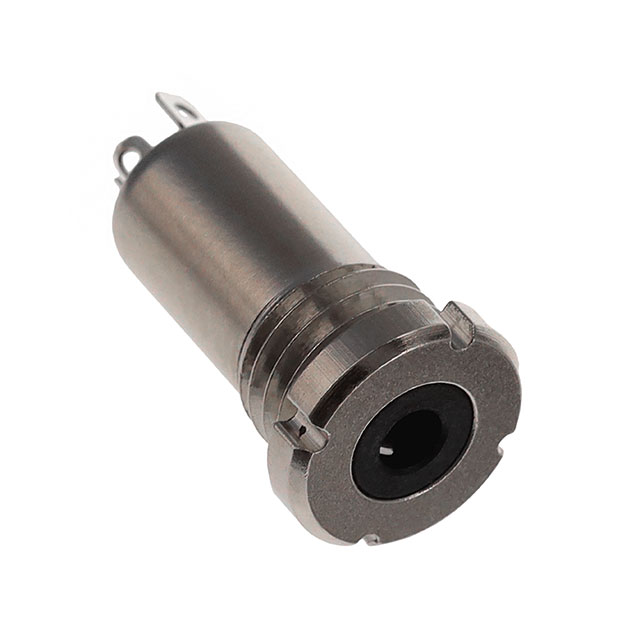

 Adam Tech | Black | Silver | 0.5 A | 11 mm | 0.433 in | 30 V | Steel Alloy | Polyamide (PA10T) Nylon 10T | -20 ░C | 70 °C | 4 | 4 | Stereo (4 Conductor TRRS) | 2.5 mm | 0.094 " | 3 /32" | Phone Jack | Female | 2.6 mm | 0.102 in | Mounting Hardware Not Included | Panel Mount | Solder Eyelet(s) | Unshielded | M8 |
