PTC25 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 50POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions	Shrouding	Material Flammability Rating	Number of Rows [custom]	Contact Type	Termination	Style	Contact Finish - Post	Insulation Height	Insulation Height	Fastening Type	Insulation Material	Contact Length - Mating	Contact Length - Mating	Overall Contact Length [x]	Overall Contact Length [x]	Contact Shape	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Contact Material	Current Rating (Amps)	Insulation Color	Connector Type	Number of Positions Loaded	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Overall Contact Length	Overall Contact Length
Sullins Connector Solutions PTC25DADN	2.54 µm	100 µin	50	Unshrouded	UL94 V-0	2	Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm	19.05 mm	0.75 in	Square	Through Hole	0.1 "	2.54 mm	10.67 mm	0.42 in	Copper Alloy	3 A	Black	Header	All	0.1 in	2.54 mm	100 çin	2.54 çm

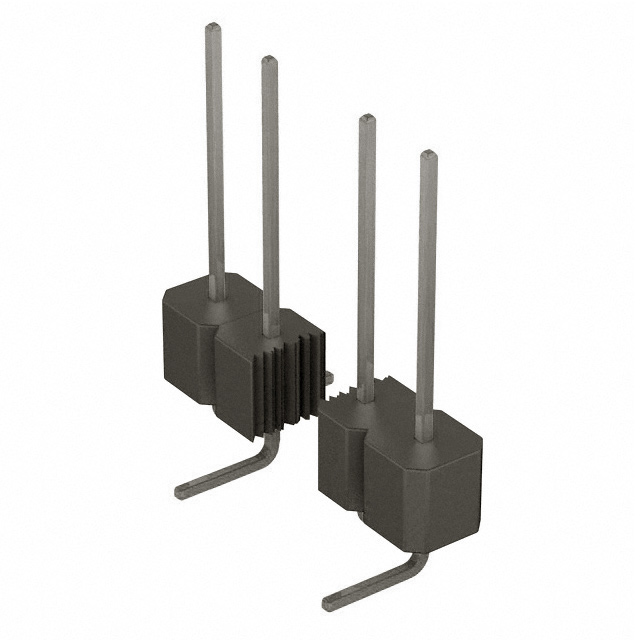

Sullins Connector Solutions PTC25SBAN	2.54 µm	100 µin	25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.14 in	3.56 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm			Square	Right Angle Through Hole	0.1 "	2.54 mm	3.05 mm	0.12 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1
Sullins Connector Solutions PTC25SFAN	2.54 µm	100 µin	25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm	13.67 mm	0.538 in	Square	Through Hole	0.1 "	2.54 mm	3.05 mm	0.12 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1
Sullins Connector Solutions PTC25SFBN			25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm			Square	Through Hole	0.1 "	2.54 mm	5.58 mm	0.22 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1	0.638 in	16.21 mm
Sullins Connector Solutions PTC25SBCN	2.54 µm	100 µin	25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.14 in	3.56 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm			Square	Right Angle Through Hole	0.1 "	2.54 mm	8.13 mm	0.32 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1
Sullins Connector Solutions PTC25SBDN	2.54 µm	100 µin	25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.14 in	3.56 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm			Square	Right Angle Through Hole	0.1 "	2.54 mm	10.67 mm	0.42 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1

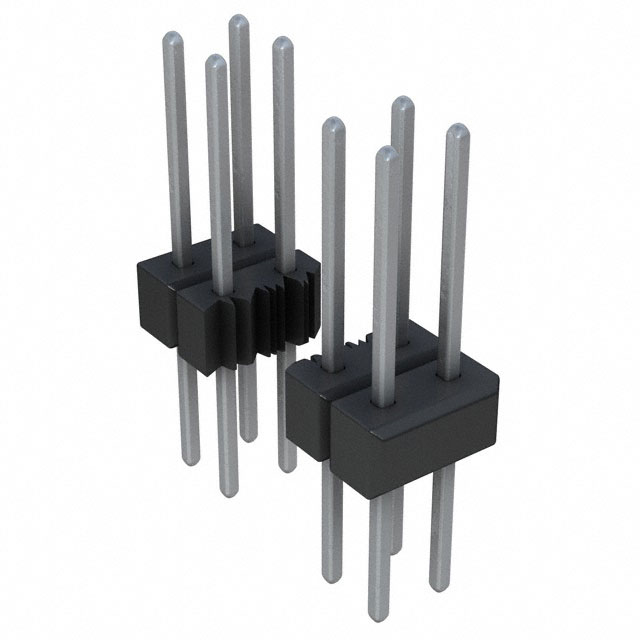

Sullins Connector Solutions PTC25DFBN	2.54 µm	100 µin	50	Unshrouded	UL94 V-0	2	Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm			Square	Through Hole	0.1 "	2.54 mm	5.58 mm	0.22 in	Copper Alloy	3 A	Black	Header	All	0.1 in	2.54 mm	100 çin	2.54 çm		0.638 in	16.21 mm
Sullins Connector Solutions PTC25DAEN	2.54 µm	100 µin	50	Unshrouded	UL94 V-0	2	Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm			Square	Through Hole	0.1 "	2.54 mm	13.21 mm	0.52 in	Copper Alloy	3 A	Black	Header	All	0.1 in	2.54 mm	100 çin	2.54 çm		0.85 in	21.59 mm

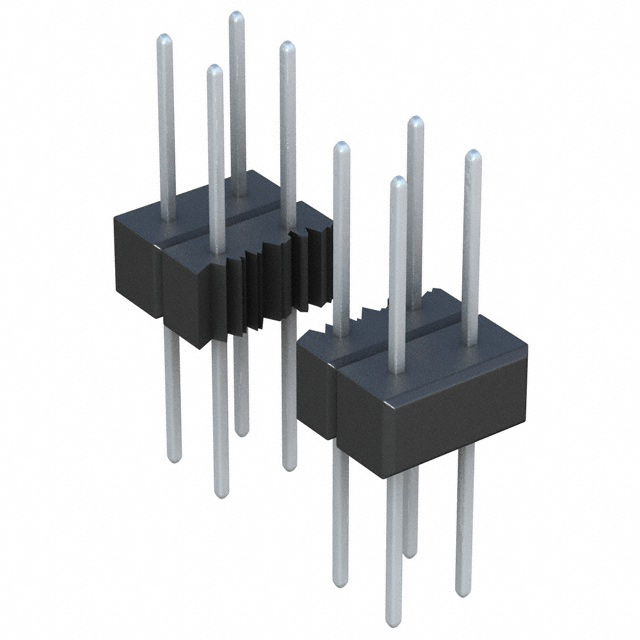

Sullins Connector Solutions PTC25DABN	2.54 µm	100 µin	50	Unshrouded	UL94 V-0	2	Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.23 in	5.84 mm			Square	Through Hole	0.1 "	2.54 mm	5.84 mm	0.23 "	Copper Alloy	3 A	Black	Header	All	0.1 in	2.54 mm	100 çin	2.54 çm		0.56 in	14.22 mm
Sullins Connector Solutions PTC25SFEN	2.54 µm	100 µin	25	Unshrouded	UL94 V-0		Male Pin	Solder	Board to Board Cable	Tin	0.1 in	2.54 mm	Push-Pull	Polyester Thermoplastic	0.318 in	8.08 mm			Square	Through Hole	0.1 "	2.54 mm	13.21 mm	0.52 in	Copper Alloy	3 A	Black	Header	All			100 çin	2.54 çm	1	0.938 in	23.83 mm
