5008 Series

AC Power Entry Modules 1A M5 INLET FILTER

Manufacturer: SCHURTER Inc.

Catalog

AC Power Entry Modules 1A M5 INLET FILTER

Catalog

AC Power Entry Modules 1A M5 INLET FILTER

Part	Connector Type	Panel Thickness	Panel Thickness	Filter Type	Accomodates a Fuse	Termination	Termination	Termination	Material Flammability Rating	Mounting Type	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection	Number of Positions	Connector Style	Voltage Rating - Appliance Inlet	Approval Agency	Current Rating - Filter	Current Rating - Appliance Inlet

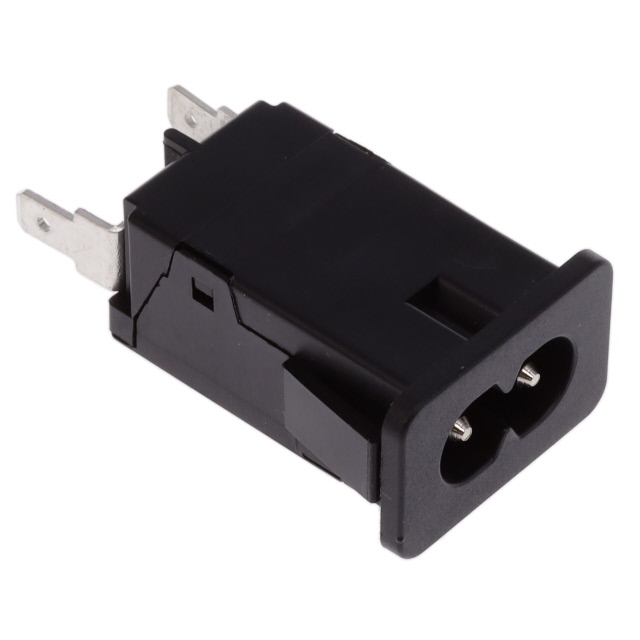

SCHURTER Inc. 5008.1012	Receptacle Male Pins	1 mm	0.039 in	Filtered (EMI RFI) - Commercial		0.189 "	4.8 mm	Quick Connect	UL94 V-0	Panel Mount Snap-In	18 mm	27.2 mm	IP40	2	IEC 320-C8 Non-Polarized	250 VAC	cULus ENEC	2.5 A	2.5 A

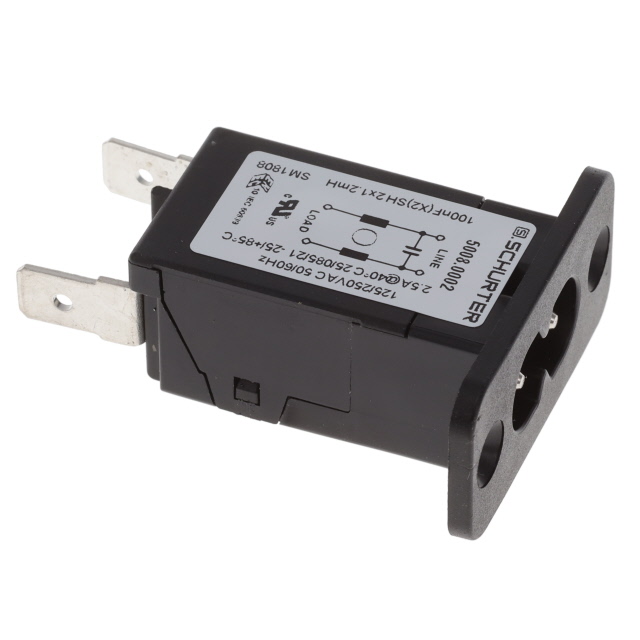

SCHURTER Inc. 5008.0002	Receptacle Male Pins			Filtered (EMI RFI) - Commercial		0.25 "	6.3 mm	Quick Connect	UL94 V-0	Flange Panel Mount	16 mm	20.2 mm	IP40	2	IEC 320-C8 Non-Polarized	250 VAC	cULus ENEC	2.5 A	2.5 A
SCHURTER Inc. 5008.1111	Receptacle Male Pins	1 mm	0.039 in	Filtered (EMI RFI) - Commercial Medical		0.189 "	4.8 mm	Quick Connect	UL94 V-0	Panel Mount Snap-In	18 mm	27.2 mm	IP40	2	IEC 320-C8 Non-Polarized	250 VAC	cULus ENEC	1 A	1 A
SCHURTER Inc. 5008.2021	Receptacle Male Pins	1.5 mm	0.059 in	Filtered (EMI RFI) - Commercial				Solder Eyelet	UL94 V-0	Panel Mount Snap-In	18 mm	27.2 mm	IP40	2	IEC 320-C8 Non-Polarized	250 VAC	cULus ENEC	1 A	1 A
SCHURTER Inc. 5008.2114	Receptacle Male Pins	1.5 mm	0.059 in	Filtered (EMI RFI) - Commercial Medical		0.189 "	4.8 mm	Quick Connect	UL94 V-0	Panel Mount Snap-In	18 mm	27.2 mm	IP40	2	IEC 320-C8 Non-Polarized		cULus ENEC	4 A
