LP16 Series

Manufacturer: E-Switch

Catalog

SWITCH PUSH SPST-NO 0.1A 20V

Part	Electrical Life	Actuator Marking	Voltage Rating - DC	Illumination Voltage (Nominal)	Switch Function	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Actuator Type	Current Rating (Amps)	Type	Color - Actuator/Cap	Illumination Type, Color	Lamp Color	Voltage	Panel Cutout Dimensions	Panel Cutout Dimensions	Panel Cutout Shape	Lens Size	Lens Style	Ratings	Lens Size [x]	Lens Size [y]	Lens Color

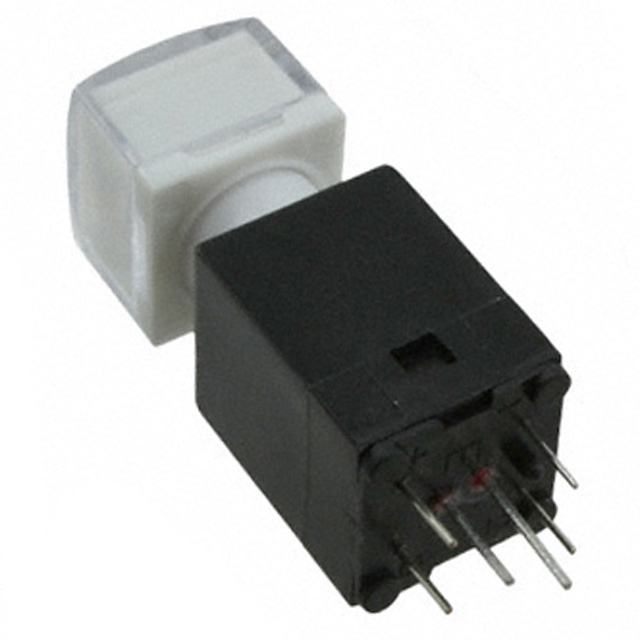

E-Switch LP16OA1ASTWB	50 000 000	No Marking	20 V	3 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	Blue LED
E-Switch LP16OA1BSTWR	50 000 000	No Marking	20 V	1.95 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	LED Red

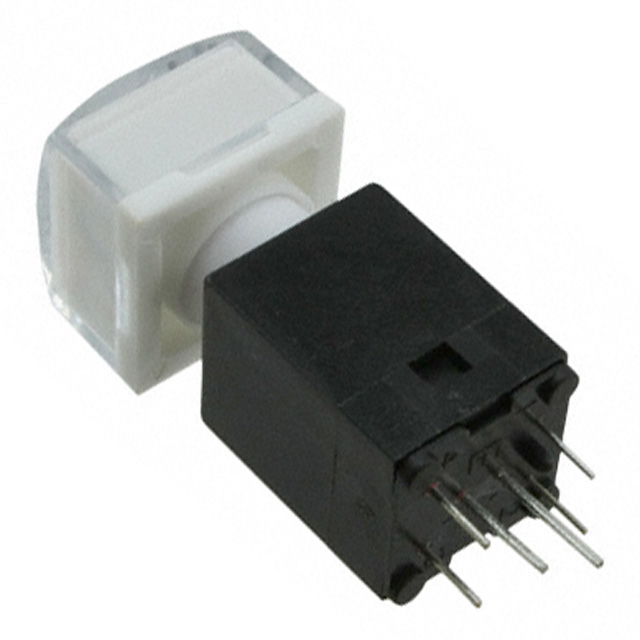

E-Switch LP16OA1BSTWG	50 000 000	No Marking	20 V	3.3 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	Green LED
E-Switch L16PLS10KGRNGRN													LED			Green	24 V	16 mm	0.63 in	Round	18 mm	Square with Flat Top	DC
E-Switch L16PLT10HWHTYEL						Solder Lug							LED			White	6 V	16 mm	0.63 in	Round		Rectangle with Flat Top	DC	24 mm	18 mm	Yellow

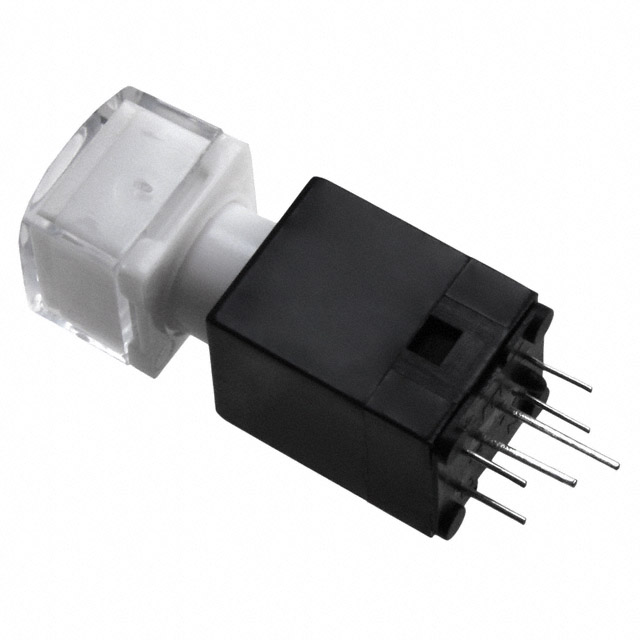

E-Switch LP16OA1ASTWG	50 000 000	No Marking	20 V	3.3 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	Green LED

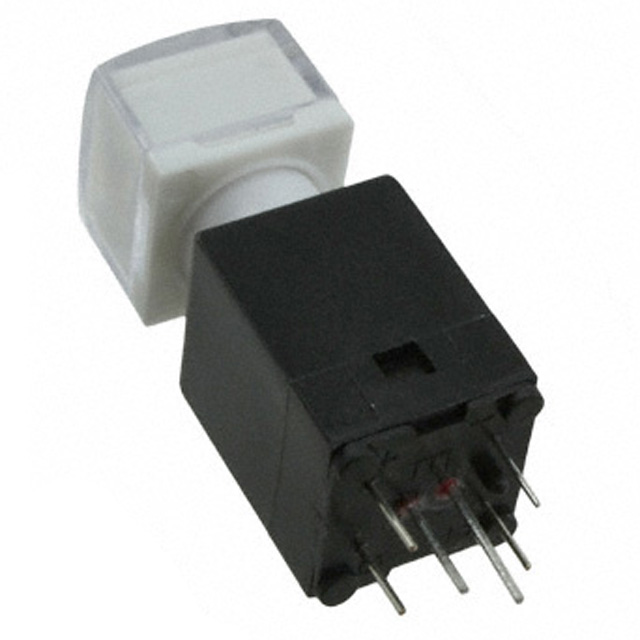

E-Switch LP16OA1ASTWR	50 000 000	No Marking	20 V	1.95 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	LED Red
E-Switch LP16OA1BSTWB	50 000 000	No Marking	20 V	3 VDC	Off-Mom	PC Pin	SPST-NO	60 °C	-5 °C	Through Hole	Button Square	100 mA	Illuminated Standard	Clear	Blue LED
E-Switch L16PLT10HWHTRED						Solder Lug							LED			White	6 V	16 mm	0.63 in	Round		Rectangle with Flat Top	DC	24 mm	18 mm	Red
