214756 Series

Manufacturer: Molex

Catalog

MICRO-FIT 3.0 FEMALE-TO-PIGTAIL OFF-THE-SHELF (OTS) CABLE ASSEMBLY, DUAL ROW, 150.00MM LENGTH, TIN (SN) PLATING, 2 CIRCUITS, BLACK

Part	Connector Type	Length	Length	Length	Contact Finish Thickness	Contact Finish Thickness	Pitch - Connector	Pitch - Connector	Contact Finish	Number of Rows	Cable Termination	Number of Positions	Shielding	Length [x]	Length [x]	Length [x]
Molex 2147561021	Socket to Individual Wire Leads	150 mm	5.91 "	0.492 ft	1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	2	Unshielded

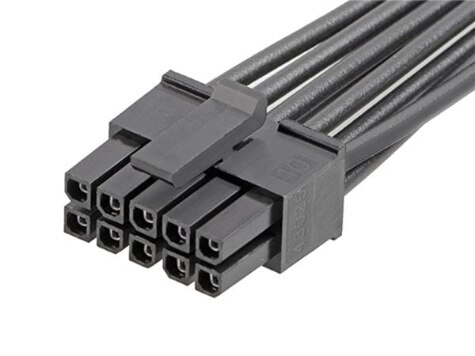

Molex 2147562103	Socket to Individual Wire Leads	600 mm		1.97 ft	0.76 Ám	30 Áin	0.118 in	3 mm	Gold	2	Crimp	10	Unshielded
Molex 2147562102	Socket to Individual Wire Leads				0.76 Ám	30 Áin	0.118 in	3 mm	Gold	2	Crimp	10	Unshielded	0.984 '	11.81 "	300 mm
Molex 2147561062	Socket to Individual Wire Leads				1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	6	Unshielded	0.984 '	11.81 "	300 mm
Molex 2147561022	Socket to Individual Wire Leads				1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	2	Unshielded	0.984 '	11.81 "	300 mm
Molex 2147562062	Socket to Individual Wire Leads				0.76 Ám	30 Áin	0.118 in	3 mm	Gold	2	Crimp	6	Unshielded	0.984 '	11.81 "	300 mm
Molex 2147561063	Socket to Individual Wire Leads	600 mm		1.97 ft	1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	6	Unshielded
Molex 2147561043	Socket to Individual Wire Leads	600 mm		1.97 ft	1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	4	Unshielded
Molex 2147562101	Socket to Individual Wire Leads	150 mm	5.91 "	0.492 ft	0.76 Ám	30 Áin	0.118 in	3 mm	Gold	2	Crimp	10	Unshielded
Molex 2147561103	Socket to Individual Wire Leads	600 mm		1.97 ft	1.02 Ám	40 Áin	0.118 in	3 mm	Tin	2	Crimp	10	Unshielded
