SC23-11 Series
Manufacturer: Kingbright
Beta
⌘K

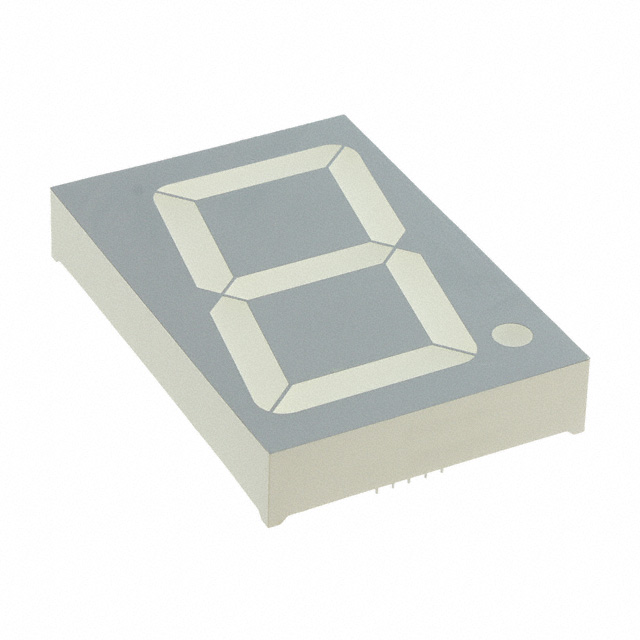

2.3" RED LED DISPLAY
| Part | Common Pin | Number of Characters | Millicandela Rating | Color | Display Type | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Power Dissipation (Max) [Max] | Wavelength - Peak | Package / Case | Package / Case | Package / Case | Current - Test | Voltage - Forward (Vf) (Typ) | Power Dissipation (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Kingbright | Common Cathode | 1 | 440 mcd | Red | 7-Segment | 2.24 in | 56.9 mm | 48 mm | 70 mm | 1.89 in | 2.756 " | 0.482 in | 12.25 mm | 75 mw | 645 nm | 2.366 in | 60.1 mm | 10-DIP | 10 mA | 3.7 V 7.4 V | |
 Kingbright | Common Cathode | 1 | 190 mcd | Red | 7-Segment | 2.24 in | 56.9 mm | 48 mm | 70 mm | 1.89 in | 2.756 " | 0.472 " | 12 mm | 660 nm | 10-DIP (2.367" 60.10mm) | 20 mA | 7.4 V | 300 mW | |||
 Kingbright | Common Cathode | 1 | 40 mcd | Yellow | 7-Segment | 2.24 in | 56.9 mm | 48 mm | 70 mm | 1.89 in | 2.756 " | 0.472 " | 12 mm | 590 nm | 10-DIP (2.367" 60.10mm) | 20 mA | 8.4 V | 300 mW | |||
Kingbright | Common Cathode | 1 | 57 mcd | Red | 7-Segment | 2.24 in | 56.9 mm | 48 mm | 70 mm | 1.89 in | 2.756 " | 0.472 " | 12 mm | 627 nm | 10-DIP (2.367" 60.10mm) | 20 mA | 8 V | 300 mW |
