3UG4622 Series

Manufacturer: Siemens

Catalog

MONITORING RELAY

Part	Operating Temperature [Min]	Operating Temperature [Max]	Delay Time [Min]	Delay Time [Max]	Mounting Type	Contact Rating @ Voltage	Trip Range [Min]	Trip Range [Max]	Type	Circuit	Voltage - Supply [Min]	Voltage - Supply [Max]	Output Type
Siemens 3UG46221AA30	-25 °C	60 °C	0.1 Sec	20 s	DIN Rail	3 A 400 VAC	0.05 A	15 A	Current Sensing AC/DC	SPDT (1 Form C)	20.4 VAC	26.4 VAC/DC	Relay
Siemens 3UG46222AA30	-25 °C	60 °C	0.1 Sec	20 s	DIN Rail	3 A 400 VAC	0.05 A	15 A	Current Sensing AC/DC	SPDT (1 Form C)	20.4 VAC	26.4 VAC/DC	Relay

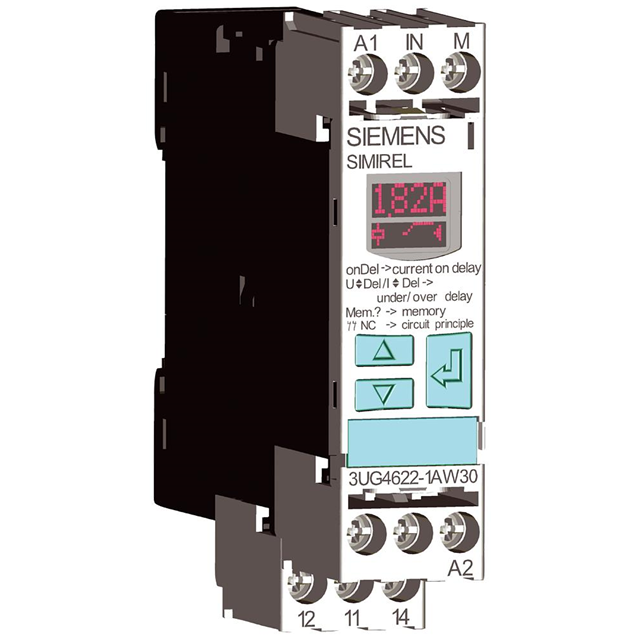

Siemens 3UG46221AW30	-25 °C	60 °C	0.1 Sec	20 s	DIN Rail	3 A 400 VAC	0.05 A	15 A	Current Sensing AC/DC	SPDT (1 Form C)	20.4 VAC	264 VAC	Relay
Siemens 3UG46222AW30	-25 °C	60 °C	0.1 Sec	20 s	DIN Rail	3 A 400 VAC	0.05 A	15 A	Current Sensing AC/DC	SPDT (1 Form C)	20.4 VAC	264 VAC	Relay
