160864 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

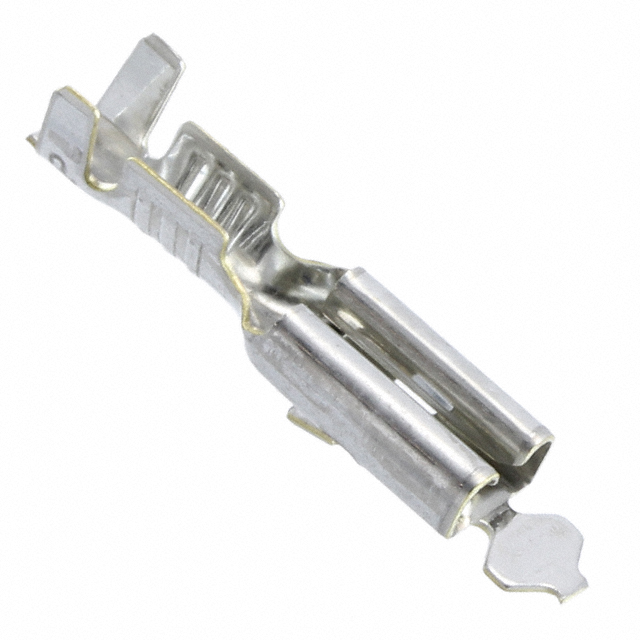

CONN QC RCPT 17-20AWG 0.110
| Part | Mounting Type | Tab Length | Tab Length | Tab Width | Tab Width | Length - Overall [x] | Length - Overall [x] | Terminal Type | Contact Finish | Termination | Contact Material | Gender | Tab Thickness | Tab Thickness | Wire Gauge [Min] | Wire Gauge [Max] | Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Free Hanging (In-Line) | 0.248 in | 6.3 mm | 2.79 mm | 0.11 " | 0.551 " | 14 mm | Standard | Tin | Crimp | Brass | Female | 0.032 in | 0.81 mm | 17 AWG | 20 AWG | Non-Insulated | 0.055 " 1.4 mm | 0.091 " 2.31 mm |
