432302 Series

Catalog

CONN BARRIER STRIP 3CIRC 0.438"

Part	Terminal Screw Finish	Material - Insulation	Mounting Type	Material Flammability Rating	Operating Temperature	Terminal Screw Material	Features	Top Termination	Current Rating (Amps)	Wire Gauge [Max]	Wire Gauge [Min]	Bottom Termination [diameter]	Bottom Termination	Terminal Block Type	Number of Wire Entries	Voltage Rating	Pitch [x]	Pitch [x]	Number of Rows	Barrier Type	Number of Circuits	Number of Wire Entries [custom]
Curtis Industries 432302-03-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	3	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	3
Curtis Industries 432302-26-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	26	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	26
Curtis Industries 432302-24-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block		600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	24
Curtis Industries 432302-12-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	12	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	12
Curtis Industries 432302-07-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block		600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	7	7
Curtis Industries 432302-16-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	16	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	16
Curtis Industries 432302-20-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	20	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	20

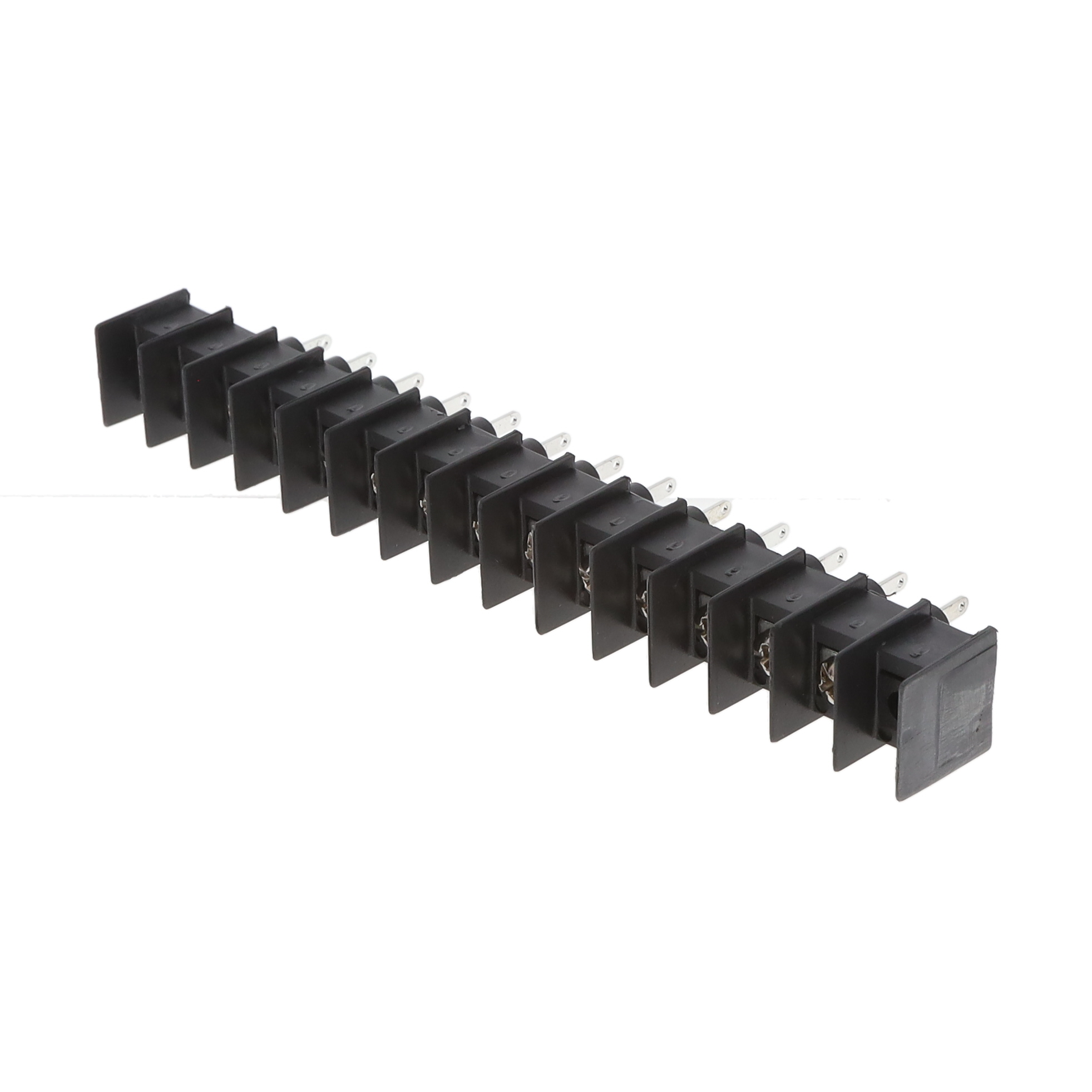

Curtis Industries 432302-13-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	13	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	13
Curtis Industries 432302-19-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	19	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	19
Curtis Industries 432302-22-0	Nickel	Polypropylene (PP)	Chassis Panel	UL94 V-0	105 C	Brass	Flange	Screws	20 A	22 AWG	12 AWG	0.11 in	Quick Connect	Barrier Block	22	600 V	0.438 in	11.12 mm	1	2 Wall (Dual)	22
