345-049 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 49POS 0.100

...

Part	Contact Finish	Mounting Type	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Number of Positions/Bay/Row [custom]	Termination	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows	Read Out	Card Type	Flange Feature	Gender	Material - Insulation	Features	Pitch [x]	Pitch [x]	Color	Termination Rows	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Flange Feature

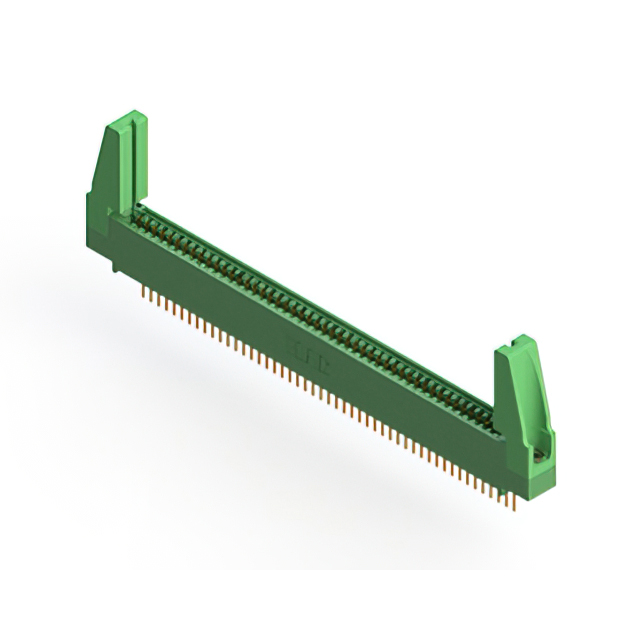

EDAC Inc. 345-049-523-488	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic	Card Guides	2.54 mm	0.1 in	Green	1	Copper Alloy

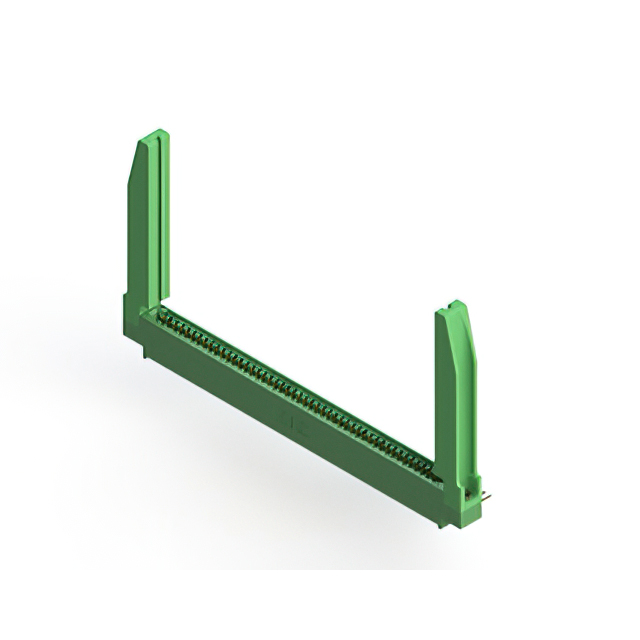

EDAC Inc. 345-049-559-678	Gold	Through Hole Right Angle	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic	Card Guides	2.54 mm	0.1 in	Green	1	Copper Alloy

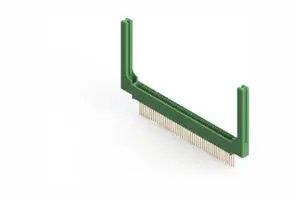

EDAC Inc. 345-049-541-658	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic	Card Guides	2.54 mm	0.1 in	Green	1	Copper Alloy
EDAC Inc. 345-049-541-407	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	M3 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic		2.54 mm	0.1 in	Green	1	Copper Alloy
EDAC Inc. 345-049-544-478	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic	Card Guides	2.54 mm	0.1 in	Green	1	Copper Alloy
EDAC Inc. 345-049-542-603	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	Floating Bobbin Top Mount Opening	Female	Polyester Thermoplastic		2.54 mm	0.1 in	Green	1	Copper Alloy	2.95 mm	0.116 in
EDAC Inc. 345-049-520-408	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic		2.54 mm	0.1 in	Green	1	Copper Alloy
EDAC Inc. 345-049-541-478	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Female	Polyester Thermoplastic	Card Guides	2.54 mm	0.1 in	Green	1	Copper Alloy

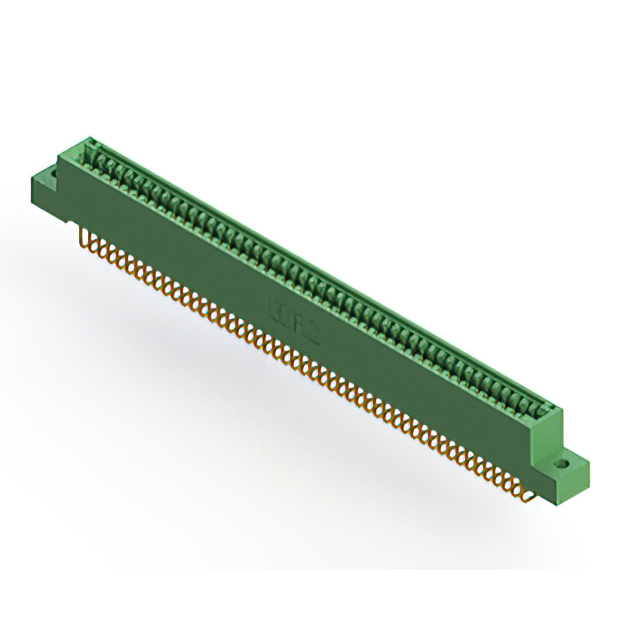

EDAC Inc. 345-049-558-102	Gold	Through Hole Right Angle	49	10 Áin	0.25 Ám	Cantilever	49	Wire Wrap	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Female	Polyester Thermoplastic		2.54 mm	0.1 in	Green	1	Copper Alloy	3.25 mm	0.128 "
EDAC Inc. 345-049-524-612	Gold	Through Hole	49	10 Áin	0.25 Ám	Cantilever	49	Solder	1.37 mm	0.054 "	1.78 mm	0.07 in	-40 °C	105 ░C	1	Single	Non Specified - Single Edge	Side Mount Opening Unthreaded	Female	Polyester Thermoplastic		2.54 mm	0.1 in	Green	1	Copper Alloy			3.25 mm	0.128 in
