AWH 34G Series

Catalog

CONN HEADER 34POS IDC GOLD

Part	Contact Finish	Features	Pitch	Pitch	Contact Type	Color	Mounting Type	Number of Positions [custom]	Connector Type	Number of Rows [custom]	Row Spacing	Row Spacing	Fastening Type	Cable Termination	Wire Type	Number of Positions Loaded	Contact Finish Thickness - Mating	Pitch - Mating	Pitch - Mating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Insulation Height	Insulation Height	Current Rating (Amps)	Contact Finish - Post	Termination	Shrouding	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Contact Material	Contact Shape	Material Flammability Rating	Insulation Color
Assmann WSW Components AWH34G-E232-IDC-R	Gold	Feed Through	0.1 "	2.54 mm	Male Pin	Gray	Panel Mount	34	Header	2	2.54 mm	0.1 "	Latch Lock/Eject Hooks Long	IDC	Ribbon Cable

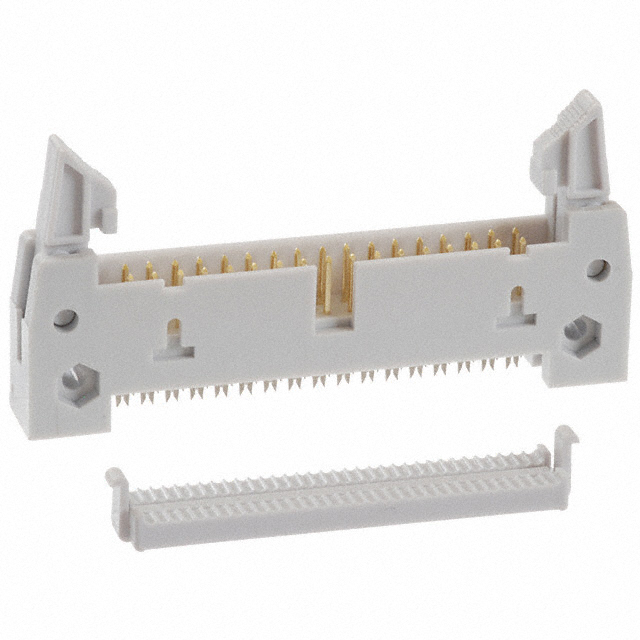

Assmann WSW Components AWH 34G-0222-IDC	Gold	Feed Through	0.1 "	2.54 mm	Male Pin	Gray	Free Hanging (In-Line)	34	Header	2	2.54 mm	0.1 "	Latch Lock/Eject Hooks	IDC	Ribbon Cable

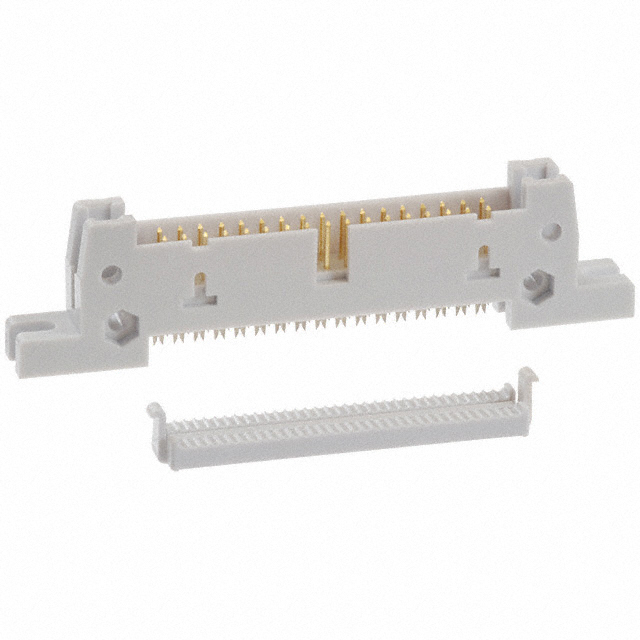

Assmann WSW Components AWH34G-E202-IDC-R	Gold	Feed Through	0.1 "	2.54 mm	Male Pin	Gray	Panel Mount	34	Header	2	2.54 mm	0.1 "		IDC	Ribbon Cable

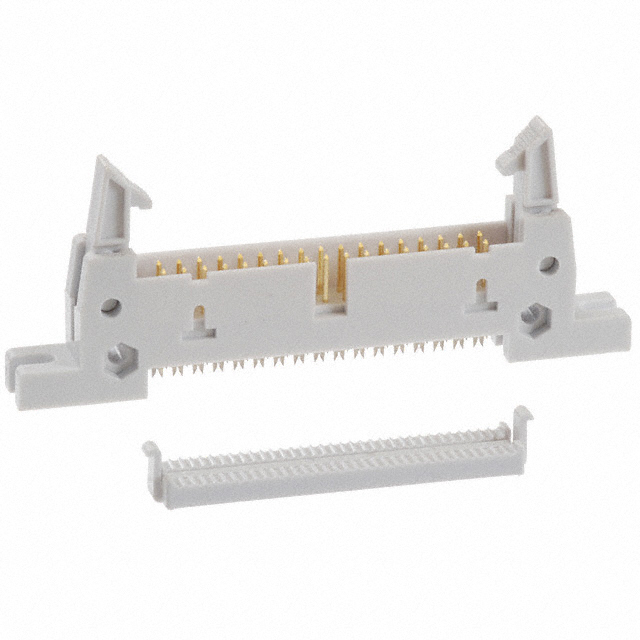

Assmann WSW Components AWH 34G-E232-IDC	Gold	Feed Through	0.1 "	2.54 mm	Male Pin	Gray	Panel Mount	34	Header	2	2.54 mm	0.1 "	Latch Lock/Eject Hooks Long	IDC	Ribbon Cable
Assmann WSW Components AWH 34G-E222-IDC	Gold	Feed Through	0.1 "	2.54 mm	Male Pin	Gray	Panel Mount	34	Header	2	2.54 mm	0.1 "	Latch Lock/Eject Hooks	IDC	Ribbon Cable

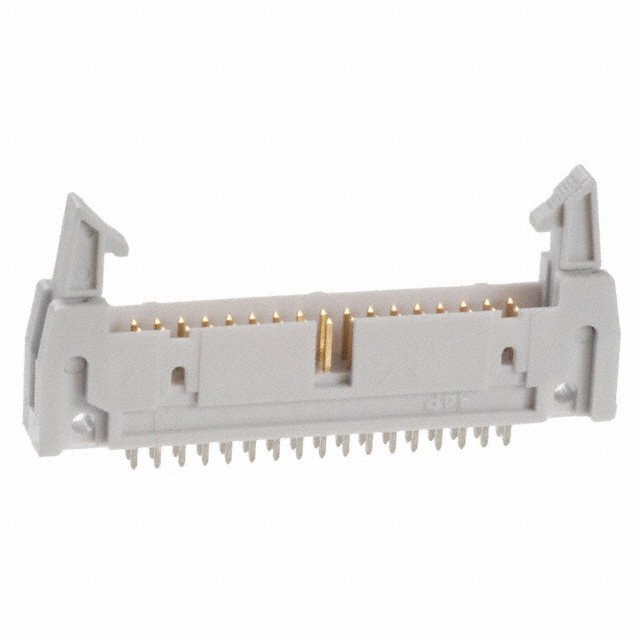

Assmann WSW Components AWH34G-0232-T-R		Keying Slot			Male Pin		Through Hole	34	Header	2			Latch Lock/Eject Hooks Long			All	Flash	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Gold	17 mm	0.669 in	3 A	Tin	Solder	Shrouded - 4 Wall	0.13 "	3.3 mm	-40 C	105 ░C	Polybutylene Terephthalate (PBT) Glass Filled	Brass	Square	UL94 V-0	Gray
