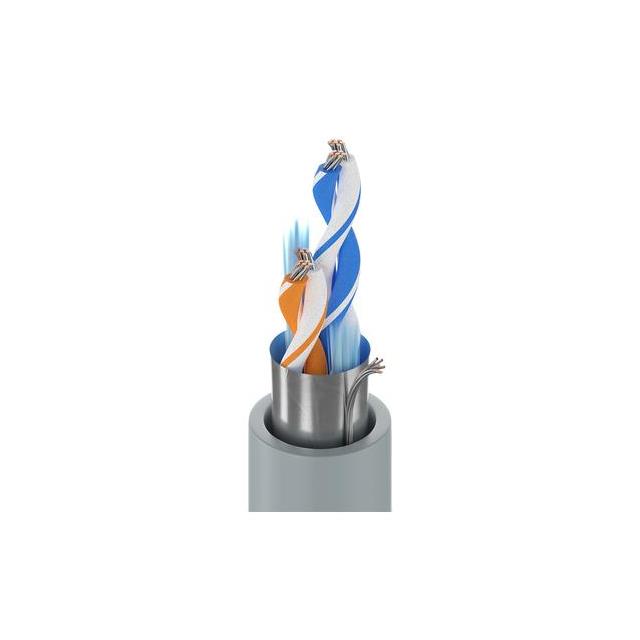

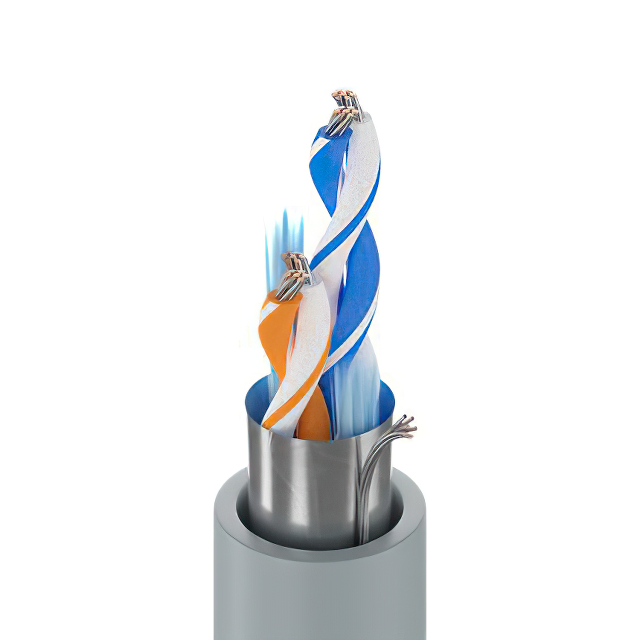

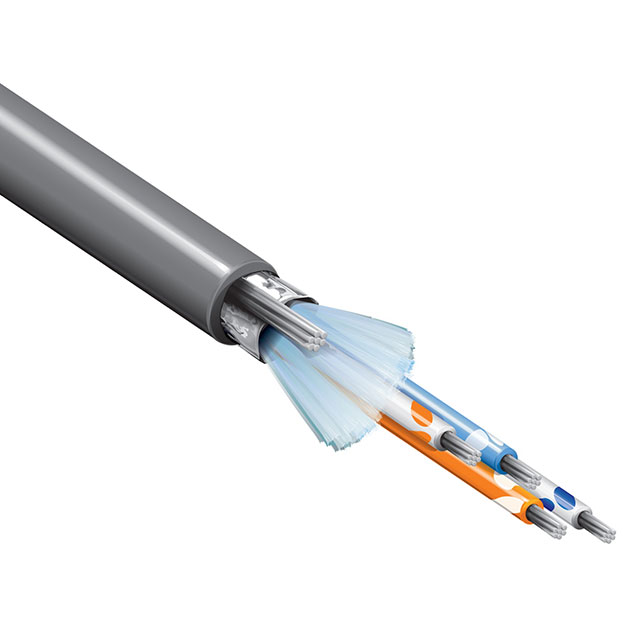

1419A Series
Manufacturer: Belden Inc.
Beta
⌘K
MULTI-PAIR 4COND 24AWG
| Part | Shield Material | Shield Coverage | Length | Length | Features | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Conductor Material | Operating Temperature [Max] | Operating Temperature [Min] | Wire Gauge | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Cable Type | Number of Conductors | Ratings | Shield Type | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Material | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum | 100 % | 304.8 m | 1000 ft | Drain Wire | 7 | 32 AWG | Computer | Copper Tinned | 80 °C | -20 ░C | 24 AWG | 0.035 in | 0.889 mm | Multi-Pair | 4 | UL Style 2919 | Foil | Chrome | 0.248 " | 6.3 mm | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | ||
 Belden Inc. | Aluminum | 100 % | 3048 m | 10000 ft | Drain Wire | 7 | 32 AWG | Computer | Copper Tinned | 80 °C | -20 ░C | 24 AWG | 0.035 in | 0.889 mm | Multi-Pair | 4 | UL Style 2919 | Foil | Chrome | 0.248 " | 6.3 mm | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | ||
 Belden Inc. | Aluminum | 100 % | 15.24 m 152.4 m | 50 ft 500 ft | Drain Wire | 7 | 32 AWG | Computer | Copper Tinned | 80 °C | -20 ░C | 24 AWG | 0.035 in | 0.889 mm | Multi-Pair | 4 | Foil | Chrome | 0.248 " | 6.3 mm | Foam Polyethylene (FPE) | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m |
