2355172 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K
BOARD TO BOARD & MEZZANINE CONNECTORS 8P,2MM,BRK HDR,SRVT,2.8,0.1AU,BOX
| Part | Material Flammability Rating | Current Rating (Amps) | Contact Length - Post [x] | Contact Length - Post | Mounting Type | Contact Finish - Mating | Contact Finish - Post | Insulation Height | Insulation Height | Overall Contact Length | Overall Contact Length | Insulation Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Voltage Rating | Number of Rows | Number of Positions | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Connector Type | Termination | Pitch - Mating [x] | Pitch - Mating [x] | Contact Type | Contact Length - Mating | Contact Length - Mating | Fastening Type | Shrouding | Contact Shape | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

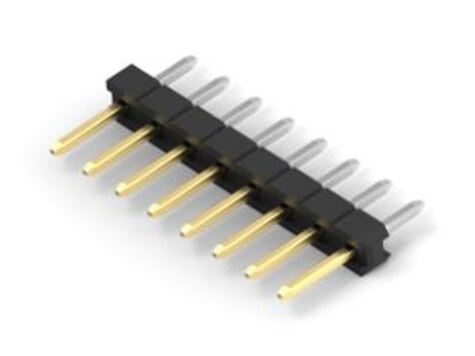

 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 A | 0.11 in | 2.79 mm | Through Hole | Gold | Tin | 1.5 mm | 0.059 " | 8.3 mm | 0.327 in | Thermoplastic | Copper Alloy | 125 °C | -40 °C | 3.94 µin | 0.1 µm | Black | 125 VAC | 1 | 8 | 2 çm | 78.7 çin | Breakaway Header | Solder | 0.079 in | 2 mm | Male Pin | 4 mm | 0.157 in | Push-Pull | Unshrouded | Square | All |

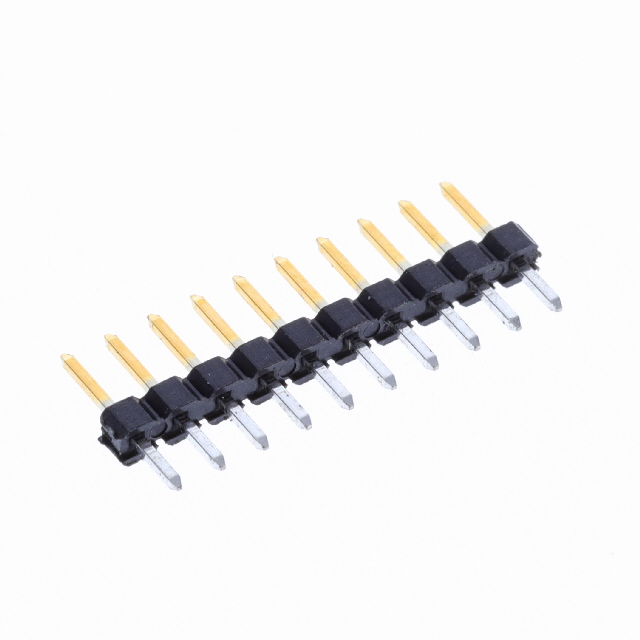

 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 A | 0.11 in | 2.79 mm | Through Hole | Gold | Tin | 1.5 mm | 0.059 " | 8.3 mm | 0.327 in | Thermoplastic | Copper Alloy | 125 °C | -40 °C | 3.94 µin | 0.1 µm | Black | 125 VAC | 1 | 10 | 2 çm | 78.7 çin | Breakaway Header | Solder | 0.079 in | 2 mm | Male Pin | 4 mm | 0.157 in | Push-Pull | Unshrouded | Square | All |

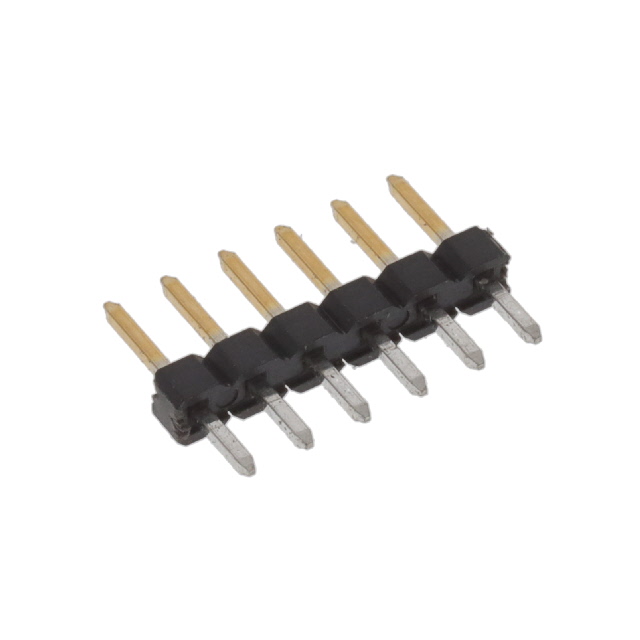

 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 A | 0.11 in | 2.79 mm | Through Hole | Gold | Tin | 1.5 mm | 0.059 " | 8.3 mm | 0.327 in | Thermoplastic | Copper Alloy | 125 °C | -40 °C | 3.94 µin | 0.1 µm | Black | 125 VAC | 1 | 6 | 2 çm | 78.7 çin | Breakaway Header | Solder | 0.079 in | 2 mm | Male Pin | 4 mm | 0.157 in | Push-Pull | Unshrouded | Square | All |
 TE Connectivity Raychem Cable Protection | UL94 V-0 | 2 A | 0.11 in | 2.79 mm | Through Hole | Gold | Tin | 1.5 mm | 0.059 " | 8.3 mm | 0.327 in | Thermoplastic | Copper Alloy | 125 °C | -40 °C | 3.94 µin | 0.1 µm | Black | 125 VAC | 1 | 2 çm | 78.7 çin | Breakaway Header | Solder | 0.079 in | 2 mm | Male Pin | 4 mm | 0.157 in | Push-Pull | Unshrouded | Square | All |
