7003-1542 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

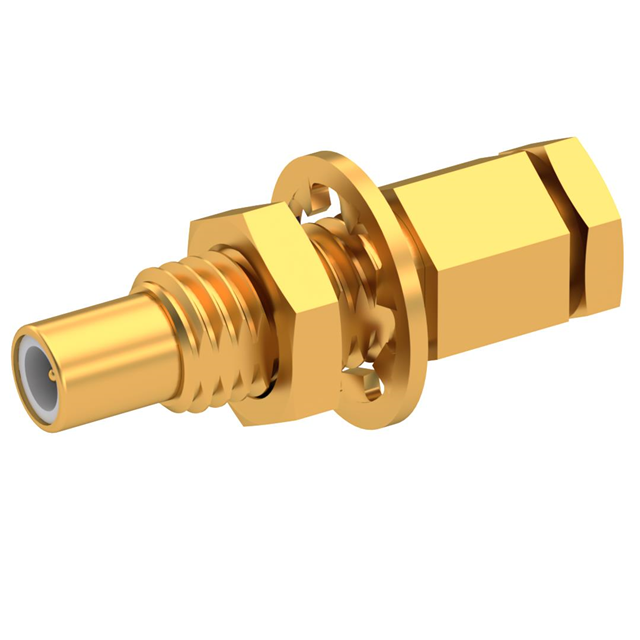

SSMC M STR BHD SD .045
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Mating Cycles | Dielectric Material | Includes | Center Contact Plating | Body Finish | Contact Termination | Mounting Type | Fastening Type | Connector Style | Impedance | Center Contact Material | Shield Termination | Cable Group | Housing Color | Frequency - Max [Max] | Connector Type | Mounting Feature | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Beryllium Copper | 250 V | 500 | Polytetrafluoroethylene (PTFE) | 1 Connector 1 Lockwasher 1 Nut | Gold | Gold | Solder | Panel Mount | Snap-On | SSMC | 50 Ohms | Beryllium Copper | Clamp | M17/151 (0.047" Semi Rigid) | Gold | 12.4 GHz | Jack Male Pin | Bulkhead - Front Side Nut | 1 |
