044144 Series
Manufacturer: Molex
Beta
⌘K

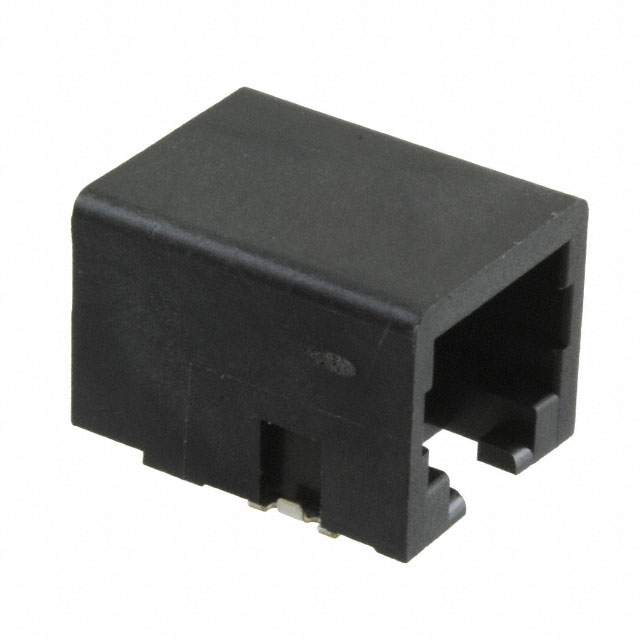

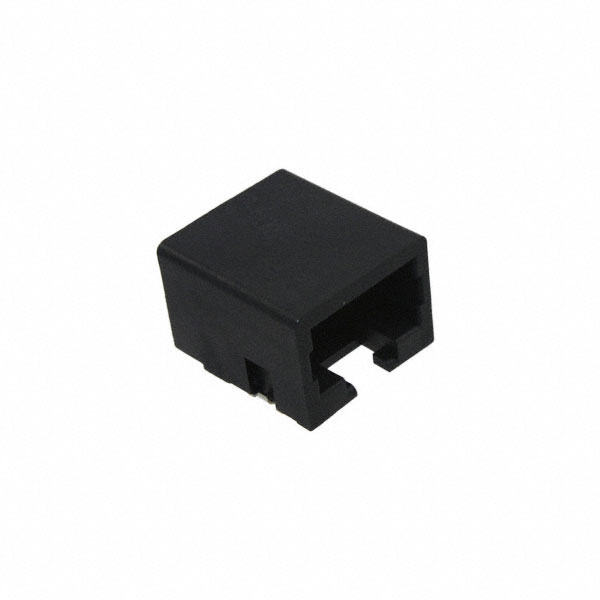

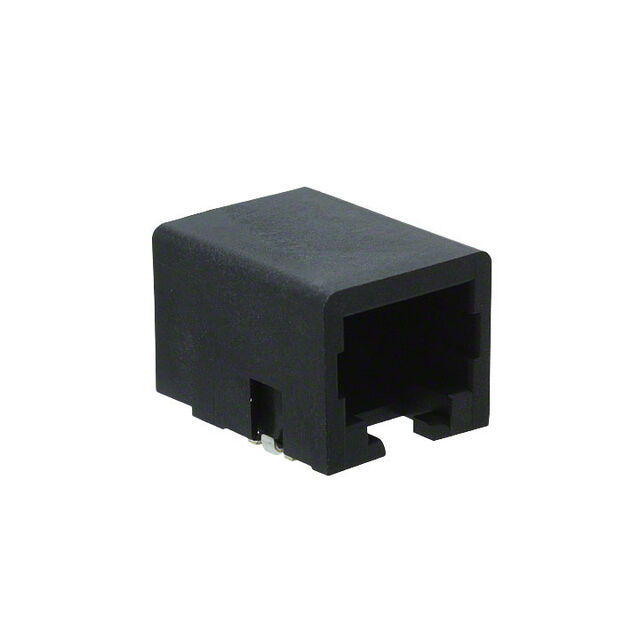

CONN MOD JACK 8P8C R/A UNSHLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Number of Positions/Contacts | Contact Material | Tab Direction | Orientation | Features | Housing Material | Shielding | Number of Ports | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Ratings | Connector Type | Mounting Type | LED Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -40 °C | 70 °C | Solder | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 0.76 Ám | 30 Áin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
 Molex | -40 °C | 70 °C | Solder | 6p4c | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 1.27 µm | 50 µin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
 Molex | -40 °C | 70 °C | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 1.27 µm | 50 µin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
Molex | -40 °C | 70 °C | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 0.76 Ám | 30 Áin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
Molex | -40 °C | 70 °C | Solder | 6p6c (RJ11 RJ12 RJ14 RJ25) | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 0.38 µm | 15 µin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
Molex | |||||||||||||||||||
Molex | -40 °C | 70 °C | Solder | 8p8c (RJ45 Ethernet) | Phosphor Bronze | Down | 90 ° | Solder Retention | Polyamide (PA) Nylon Glass Filled | Unshielded | 1 | 1 | Gold | 0.38 µm | 15 µin | Cat3 | Jack | Surface Mount | Does Not Contain LED |
