726-094 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 94POS 0.125

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Material - Insulation	Number of Rows	Number of Positions	Read Out	Contact Material	Number of Positions/Bay/Row [custom]	Mounting Type	Gender	Color	Pitch [x]	Pitch [x]	Contact Type	Card Type	Termination Rows	Termination	Contact Finish

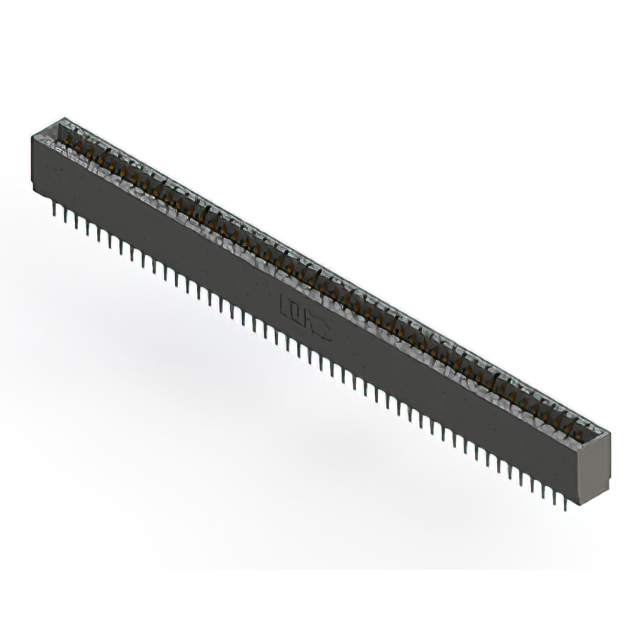

EDAC Inc. 726-094-525-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit	Gold
EDAC Inc. 726-094-520-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit	Gold
EDAC Inc. 726-094-541-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit Wire Wrap	Gold
EDAC Inc. 726-094-545-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit Wire Wrap	Gold
EDAC Inc. 726-094-553-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit Wire Wrap	Gold
EDAC Inc. 726-094-540-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit Wire Wrap	Gold
EDAC Inc. 726-094-527-201	-40 °C	105 ░C	0.76 Ám	30 Áin	1.37 mm	0.054 "	1.78 mm	0.07 in	Polyester Thermoplastic	2	94	Dual	Copper Alloy	47	Through Hole	Female	Black	0.125 in	3.18 mm	Cantilever	Non Specified - Dual Edge	2	Press-Fit	Gold
