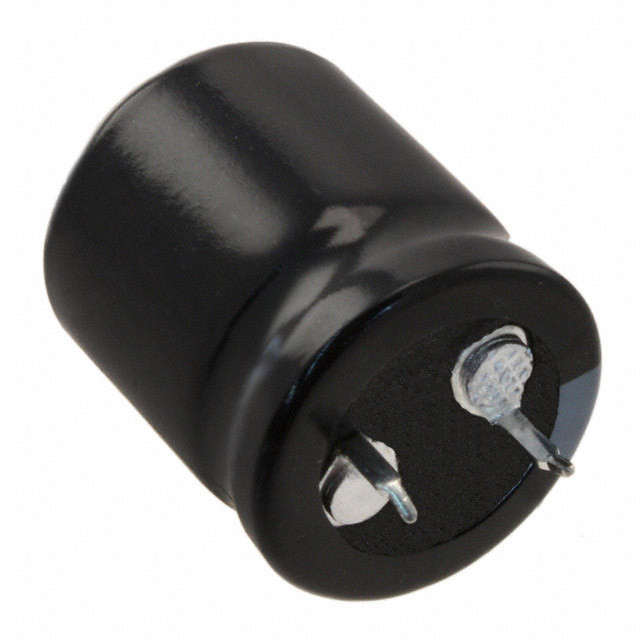

ELH686M Series
Manufacturer: KEMET
Beta
⌘K
ELECTROLYTIC CAPACITOR, SNAP-IN, ELH SERIES, 68 F, 20%, 400 V, 22 MM, 0.852 OHM ROHS COMPLIANT: YES
| Part | Applications | Tolerance | Voltage - Rated | ESR (Equivalent Series Resistance) | Ripple Current @ High Frequency | Polarization | Lead Spacing | Lead Spacing | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Capacitance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Lifetime @ Temp. | Mounting Type | Ripple Current @ Low Frequency | Size / Dimension [diameter] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | General Purpose | 20 % | 400 V | 852 mOhm | 870 mA | Polar | 0.394 in | 10 mm | 85 °C | -25 °C | Radial Can - Snap-In | 68 µF | 1.063 in | 27 mm | 2000 Hrs | Through Hole | 600 mA | 0.866 " | 22 mm |
