MATE-12B-15-20 Series
Manufacturer: LITTELFUSE
Beta
⌘K

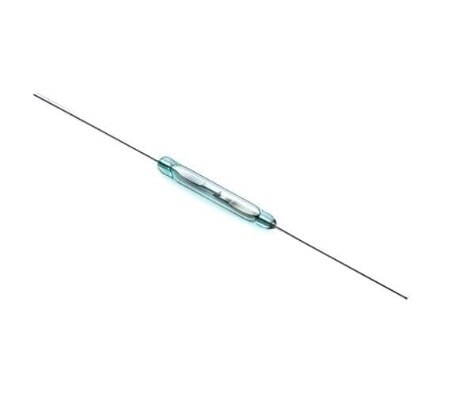

REED SWITCH, SUBMINIATURE, MATE-12B SERIES, SPST-NO, THROUGH HOLE, 500 MA, 200 VDC, 10 W
| Part | Operate Time | Operating Temperature [Max] | Operating Temperature [Min] | Type | Release Time | Current - Carry | Operate Range [Max] | Operate Range [Min] | Current - Switching | Voltage - Switching DC | Length - Overall | Length - Overall | Mounting Type | Termination Style | Circuit | Power - Rated | Size - Body [x] | Size - Body [diameter] | Size - Body [diameter] | Size - Body [x] | Capacitance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 0.6 ms | 125 °C | -40 C | Glass Body Reed | 0.2 ms | 1 A | 20 AT | 15 AT | 500 mA | 200 V | 40.39 mm | 1.59 in | Through Hole | Axial | SPST-NO | 10 W | 0.5 " | 1.8 mm | 0.071 " | 12.7 mm | 0.7 pF |
