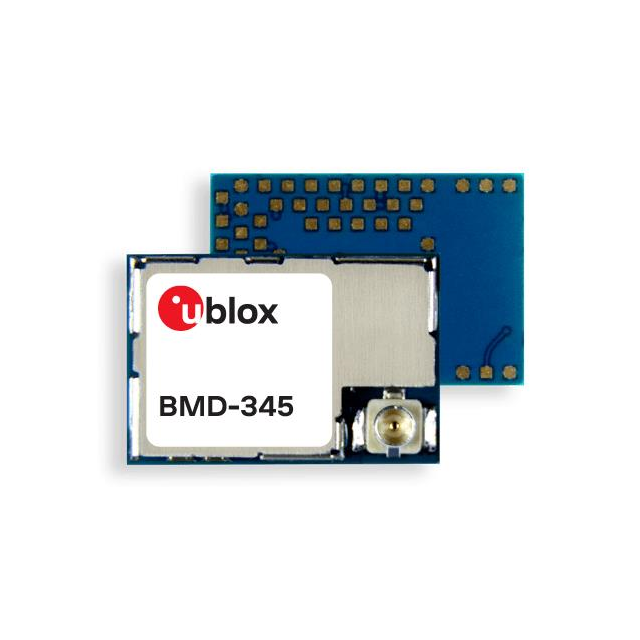

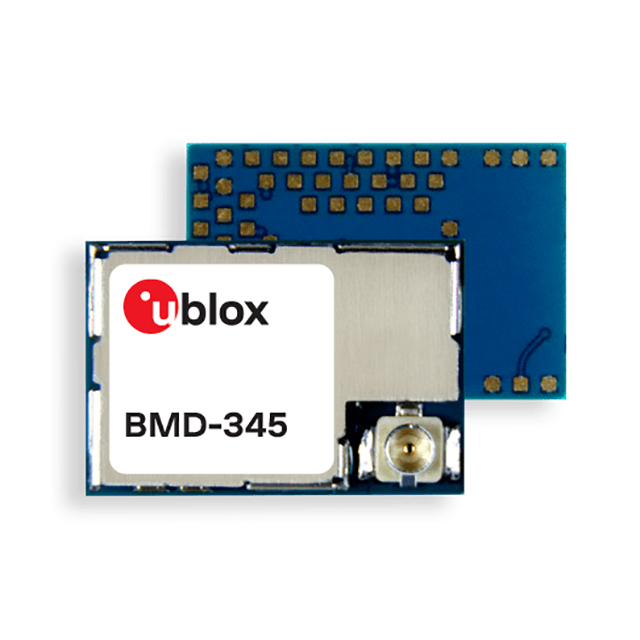

BMD-345 Series
Manufacturer: u-blox
Beta
⌘K
RF TXRX MOD 802.15.4 BTU.FL SMD
| Part | Current - Transmitting | Frequency | Utilized IC / Part | Sensitivity | Data Rate | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Mounting Type | Serial Interfaces | RF Family/Standard | Operating Temperature (Min) | Operating Temperature (Max) | Memory Size | Memory Type | Memory Size (Flash) | Package / Case | Protocol | Antenna Type | Power - Output | For Use With/Related Products | Supplied Contents | Type | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 u-blox | 4.8 mA | 2.4 GHz | nRF52840 | -102 dBm | 1 Mbps | 3.6 V | 2 V | Surface Mount | ADC GPIO I2C I2S PDM PWM SPI UART USB | 802.15.4 Bluetooth | -40 °C | 85 °C | 256 kB | Flash RAM | 1 MB | Module | Bluetooth v5.0 Thread Zigbee® | Antenna Not Included U.FL | 18 dBm | ||||
 u-blox | 2.4 GHz | BMD-345 nRF52840 | BMD-345 nRF52840 | Board(s) Cable(s) | 802.15.4 (Thread Bluetooth® 5.x (BLE) Transceiver Zigbee®) | Board Cable |
