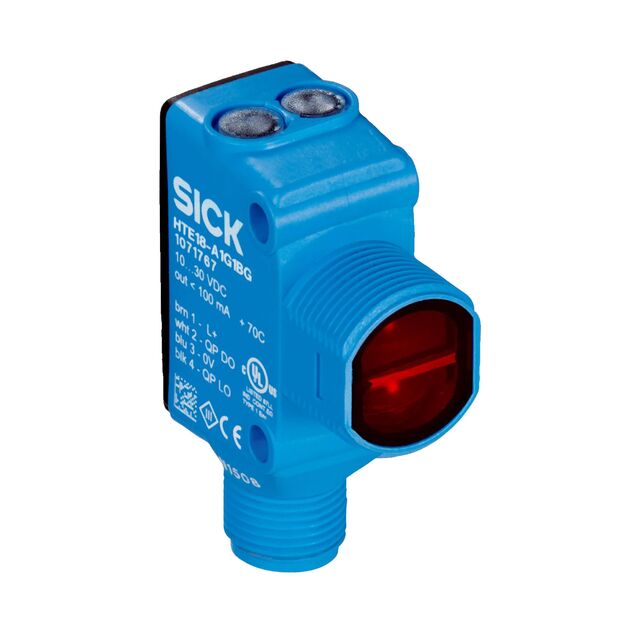

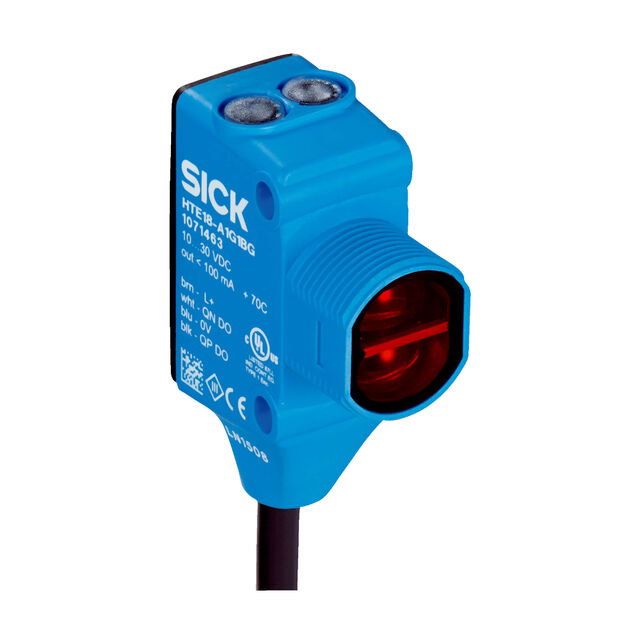

HTE18 Series

Catalog

SENSOR PROXIMITY 600MM

Part	Sensing Method	Connection Method	Ingress Protection	Adjustment Type	Light Source	Voltage - Supply [Min]	Voltage - Supply [Max]	Response Time	Sensing Distance [Max]	Sensing Distance [Min]	Cable Length	Cable Length	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Sensing Distance [Min]	Sensing Distance [Max]
SICK, Inc. 1072168	Proximity	Cable	IP67	Adjustable Potentiometer	Red (631nm)	21.6 VDC	250 VDC	500 µs	23.622 in 60 cm	0.197 in 5 mm	78.74 "	2 m	70 °C	-40 ¯C
SICK, Inc. 1080353	Proximity	Cable with Connector	IP67	Adjustable Potentiometer	Red (631nm)	10 VDC	30 VDC	500 µs	23.622 in 60 cm	0.197 in 5 mm	11.81 "	0.3 m	70 °C	-40 ¯C	PNP
SICK, Inc. 1071764	Proximity	Connector M8	IP67 IP69K	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in			70 °C	-40 ¯C	PNP	5 mm	100 cm
SICK, Inc. 1083486	Proximity	Cable with Connector	IP67	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in	5.906 in	150 mm	70 °C	-40 ¯C	NPN PNP	5 mm	100 cm
SICK, Inc. 1084798	Proximity	Connector M8	IP67	Adjustable Potentiometer	Red (631nm)	10 VDC	30 VDC	500 µs	23.622 in 60 cm	0.197 in 5 mm			70 °C	-40 ¯C	PNP
SICK, Inc. 1081782	Proximity	Connector M12	IP67	Adjustable Potentiometer	Red (631nm)	10 VDC	30 VDC	500 µs	23.622 in 60 cm	0.197 in 5 mm			70 °C	-40 ¯C	PNP
SICK, Inc. 1078531	Proximity	Connector M8	IP67	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in			70 °C	-40 ¯C	NPN PNP	5 mm	100 cm
SICK, Inc. 1081574	Proximity	Cable	IP67 IP69K	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in	78.74 "	2 m	70 °C	-40 ¯C		5 mm	100 cm
SICK, Inc. 1084841	Proximity	Cable	IP67	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in	78.74 "	2 m	70 °C	-40 ¯C		5 mm	100 cm
SICK, Inc. 1081110	Proximity	Cable with Connector	IP67	Adjustable Potentiometer	Infrared (880nm)	10 VDC	30 VDC	500 µs	39.37 in	0.197 in	5.906 in	150 mm	70 °C	-40 ¯C	NPN	5 mm	100 cm
