PS9531L2 Series

Catalog

2.5 A OUTPUT CURRENT, HIGH CMR, IGBT GATE DRIVE, 8-PIN DIP PHOTOCOUPLER

Part	Mounting Type	Current - Peak Output	Technology	Voltage - Output Supply [Min]	Voltage - Output Supply [Max]	Propagation Delay tpLH / tpHL (Max)	Approval Agency	Number of Channels [custom]	Supplier Device Package	Pulse Width Distortion (Max) [Max]	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Current - DC Forward (If) (Max) [Max]	Common Mode Transient Immunity (Min) [Min]	Operating Temperature [Max]	Operating Temperature [Min]

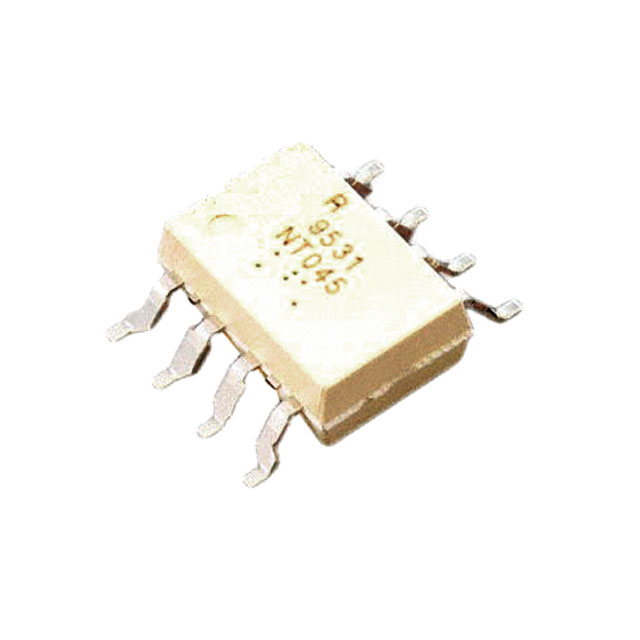

Renesas Electronics Corporation PS9531L2-V-AX	Surface Mount	2.5 A	Optical Coupling	15 V	30 V	175 ns	CSA SEMKO UL VDE	1	8-SMD	75 ns	1.56 V	40 ns	40 ns	2 A	2 A	25 mA	50 kV/çs	125 °C	-40 C
Renesas Electronics Corporation PS9531L2-V-AX	Surface Mount	2.5 A	Optical Coupling	15 V	30 V	175 ns	CSA SEMKO UL VDE	1	8-SMD	75 ns	1.56 V	40 ns	40 ns	2 A	2 A	25 mA	50 kV/çs	125 °C	-40 C
