CRE1S Series

Catalog

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, SIP, 1:1, 1 W, 1 OUTPUT, 12 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Applications	Current - Output (Max) [Max]	Type	Voltage - Output 1	Voltage - Isolation	Standard Number	Number of Outputs	Voltage - Input (Min) [Min]	Package / Case	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input (Max) [Max]	Size / Dimension [y]	Size / Dimension [z]
Murata Electronics CRE1S2412SC	Through Hole	70 °C	0 °C	80 %	ITE (Commercial)	83 mA	Isolated Module	12 V	1000 V	60950-1	1	21.6 V	4-SIP Module	0.45 "	0.39 "	0.24 "	6.1 mm	10 mm	11.5 mm	26.4 V

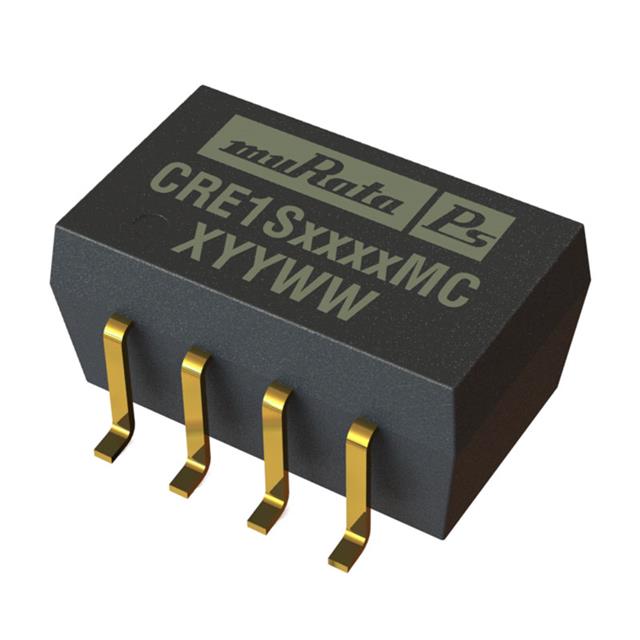

Murata Electronics CRE1S0505MC-R	Surface Mount	85 °C	-40 C	68 %	ITE (Commercial)	200 mA	Isolated Module	5 V	1000 V	60950-1	1	4.5 V	14-SMD Module 5 Leads	0.5 "	0.26 in	0.3 "	7.7 mm	6.6 mm	12.7 mm	5.5 V
Murata Electronics CRE1S0505S3C	Through Hole	85 °C	-40 C	77 %	ITE (Commercial)	200 mA	Isolated Module	5 V	3000 V	60950-1	1	4.5 V	4-SIP Module	0.45 "	0.3 in	0.24 "	6.1 mm	7.5 mm	11.5 mm	5.5 V
Murata Electronics CRE1S0505MEC	Surface Mount	85 °C	-40 C		ITE (Commercial)	200 mA	Isolated Module	5 V	1000 V	60950-1	1	4.5 V	14-SMD Module 5 Leads	0.5 "	0.28 "	0.42 "			12.7 mm	5.5 V	10.7 mm	7.1 mm
Murata Electronics CRE1S1212SC	Through Hole	85 °C	-40 C	80 %	ITE (Commercial)	83 mA	Isolated Module	12 V	1000 V	60950-1	1	10.8 V	4-SIP Module	0.45 "	0.39 "	0.24 "	6.1 mm	10 mm	11.5 mm	13.2 V

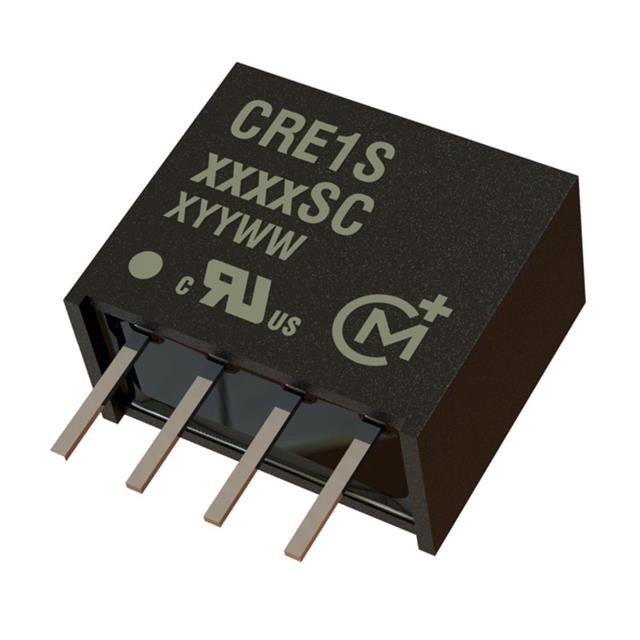

Murata Electronics CRE1S0515SC	Through Hole	85 °C	-40 C	80 %	ITE (Commercial)	67 mA	Isolated Module	15 V	1000 V	60950-1	1	4.5 V	4-SIP Module	0.45 "	0.39 "	0.24 "	6.1 mm	10 mm	11.5 mm	5.5 V
Murata Electronics CRE1S0505SC	Through Hole	85 °C	-40 C	70 %	ITE (Commercial)	200 mA	Isolated Module	5 V	1000 V	60950-1	1	4.5 V	4-SIP Module	0.45 "	0.39 "	0.24 "	6.1 mm	10 mm	11.5 mm	5.5 V
