H2122 Series
Manufacturer: Harwin Inc.
Beta
⌘K

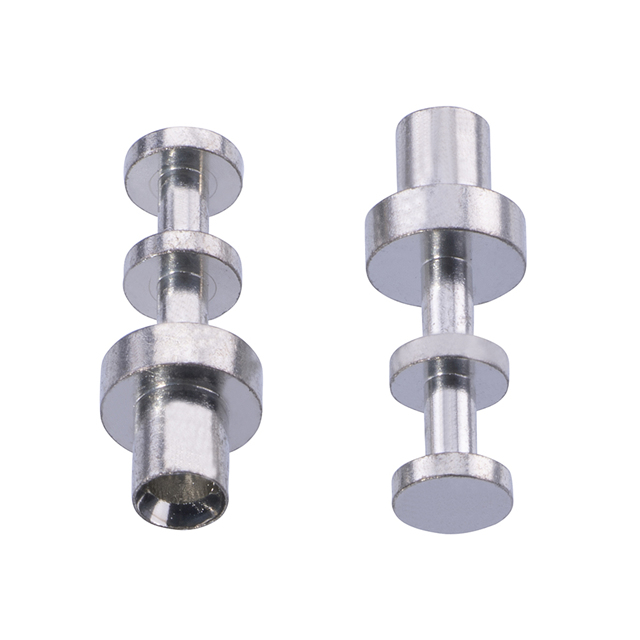

VERTICAL THROUGHBOARD TURRET LUG, TRIPLE ROHS COMPLIANT: YES
| Part | Length - Above Board [x] | Length - Above Board [x] | Board Thickness [custom] | Board Thickness [custom] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Max] | Mounting Hole Diameter [Min] | Mounting Hole Diameter [Min] | Length - Overall [custom] | Length - Overall [custom] | Insulation | Terminal Type | Number of Turrets | Diameter - Turret Head [Max] [diameter] | Diameter - Turret Head [Max] [diameter] | Diameter - Turret Head [Min] [diameter] | Diameter - Turret Head [Min] [diameter] | Staking Side ID [Max] | Staking Side ID [Min] | Staking Side ID [Max] | Staking Side ID [Min] | Termination | Mounting Type | Length - Below Flange [Max] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Min] [x] | Length - Below Flange [Max] [x] | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Harwin Inc. | 9.53 mm | 0.375 in | 0.094 in | 2.39 mm | 0.115 " | 2.93 mm | 0.112 " | 2.85 mm | 0.5 " | 12.7 mm | Non-Insulated | Single End | Double | 0.14 in | 3.56 mm | 3.48 mm | 0.137 in | 1.93 mm | 0.073 in | 0.076 in | 1.85 mm | Swage | Through Hole | 0.13 " | 0.125 " | 3.18 mm | 3.3 mm | Brass Alloy | 0.187 in | 4.75 mm | Tin |
