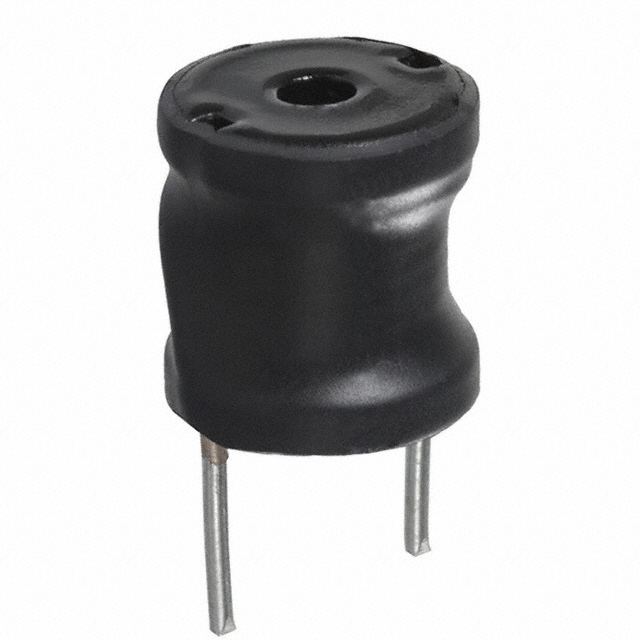

1120 Series

Catalog

FIXED IND 1.8MH 800MA 1.39OHM TH

Part	Shielding	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Material - Core	Inductance	Size / Dimension [diameter]	Size / Dimension [diameter]	DC Resistance (DCR)	Package / Case	Tolerance	Inductance Frequency - Test	Mounting Type	Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	DC Resistance (DCR) [Max]
Bourns Inc. 1120-182K	Unshielded	0.84 in	21.34 mm	Ferrite	1.8 mH	20.57 mm	0.81 in	1.39 Ohm	Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	800 mA
Bourns Inc. 1120-150K	Unshielded	0.84 in	21.34 mm	Ferrite	15 µH	20.57 mm	0.81 in		Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	9 A	13 mOhm
Bourns Inc. 1120-181K	Unshielded	0.84 in	21.34 mm	Ferrite	180 µH	20.57 mm	0.81 in	110 mOhm	Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	4 A
Bourns Inc. 1120-681K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	680 µH	20.57 mm	0.81 in		Radial	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	1.6 A	430 mOhm
Bourns Inc. 1120-180K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	18 µH	20.57 mm	0.81 in		Radial	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	7.2 A	18 mOhm
Bourns Inc. 1120-120K	Unshielded	0.84 in	21.34 mm	Ferrite	12 µH	20.57 mm	0.81 in		Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	11.4 A	9 mOhm
Bourns Inc. 1120-122K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	1200 µH	20.57 mm	0.81 in		Radial	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	800 mA

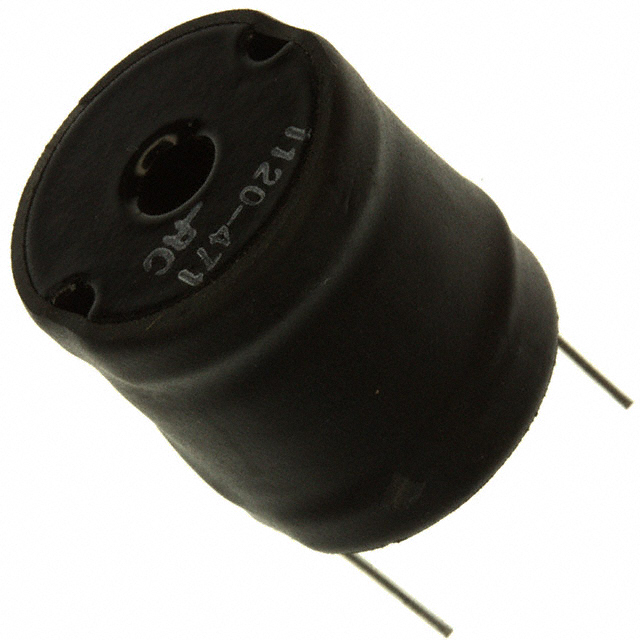

Bourns Inc. 1120-471K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	470 µH	20.57 mm	0.81 in	355 mOhm	Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	1.6 A
Bourns Inc. 1120-330K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	33 µH	20.57 mm	0.81 in	29 mOhm	Radial	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	5.5 Amps
Bourns Inc. 1120-182K-RC	Unshielded	0.84 in	21.34 mm	Ferrite	1.8 mH	20.57 mm	0.81 in	1.39 Ohm	Radial Vertical Cylinder	10 %	1 kHz	Through Hole	Drum Core Wirewound	-55 C	105 ░C	800 mA
