317-035 Series
Manufacturer: EDAC Inc.
Beta
⌘K

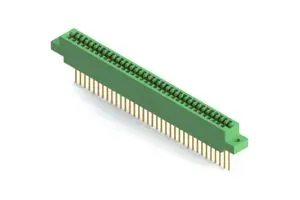

CONN EDGE DUAL FMALE 70POS 0.156
| Part | Material - Insulation | Contact Material | Number of Positions | Color | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions/Bay/Row | Flange Feature [diameter] | Flange Feature | Flange Feature [diameter] | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Read Out | Gender | Number of Rows [custom] | Card Thickness [Max] | Card Thickness [Min] | Termination | Contact Type | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | 0.116 " | Floating Bobbin Flush Mount | 2.95 mm | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever | |
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever | ||||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever | Card Guides | ||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | 4-40 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | M3 Threaded Insert Top Mount Opening | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever | |||
 EDAC Inc. | Diallyl Phthalate (DAP) | Copper Alloy | 70 | Green | Through Hole | Gold | 0.25 Ám | 10 Áin | 35 | 0.156 " | 3.96 mm | Non Specified - Dual Edge | -65 ░C | 125 °C | 3.96 mm | 0.156 in | Single | Female | 2 | 0.07 in 1.78 mm | 0.054 in 1.37 mm | Wire Wrap | Cantilever |
