ANR80 Series

Manufacturer: OptiFuse

Catalog

FUSE AUTO 16A 80VDC BLADE ATO

Part	Response Time	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Approval Agency	Color	Package / Case	Fuse Type	Current Rating (Amps)	Breaking Capacity @ Rated Voltage	Voltage Rating - DC	Mounting Type	DC Cold Resistance	Melting I²t	Melting I˛t

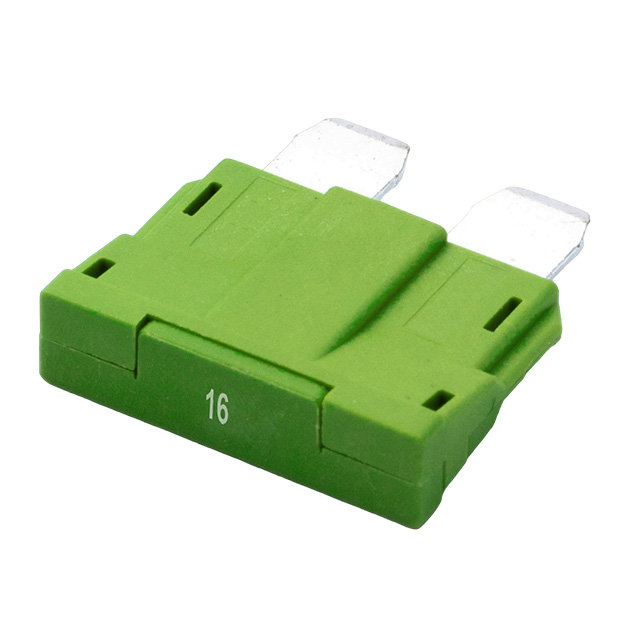

OptiFuse ANR80-UL-16A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Light Green	Blade ATO/ATC	Automotive	16 A	1 kA	80 V	Requires Holder

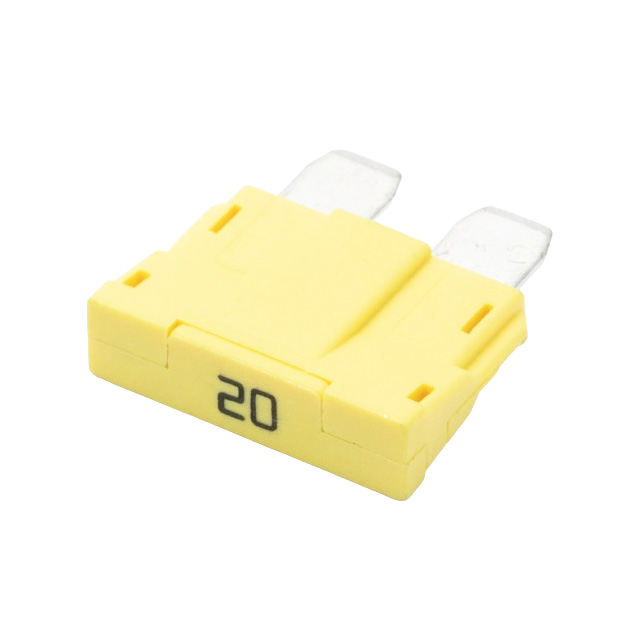

OptiFuse ANR80-UL-20A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Yellow	Blade ATO/ATC	Automotive	20 A	1 kA	80 V	Requires Holder	0.003 Ohms	360

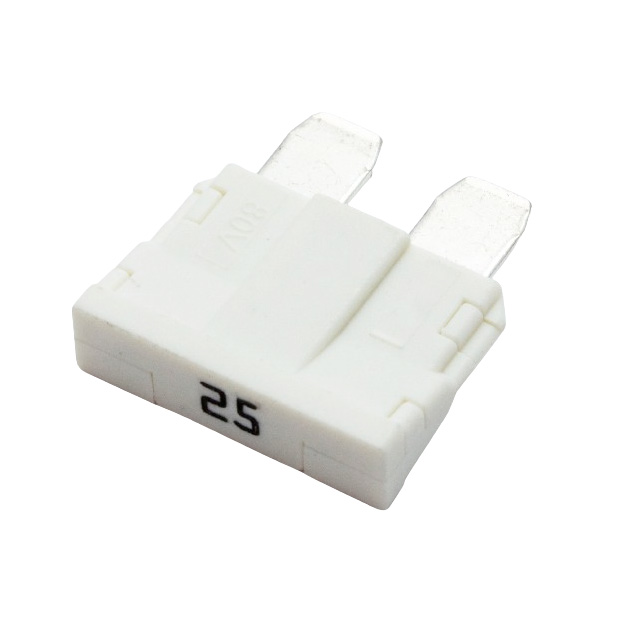

OptiFuse ANR80-UL-25A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Clear	Blade ATO/ATC	Automotive	25 A	1 kA	80 V	Requires Holder	0.0019 Ohms	813

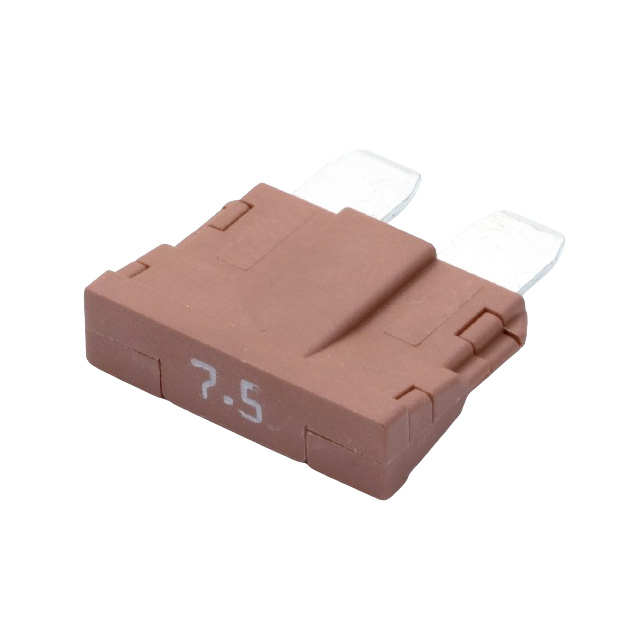

OptiFuse ANR80-UL-7.5A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Brown	Blade ATO/ATC	Automotive	7.5 A	1 kA	80 V	Requires Holder	0.009 Ohms	73.1

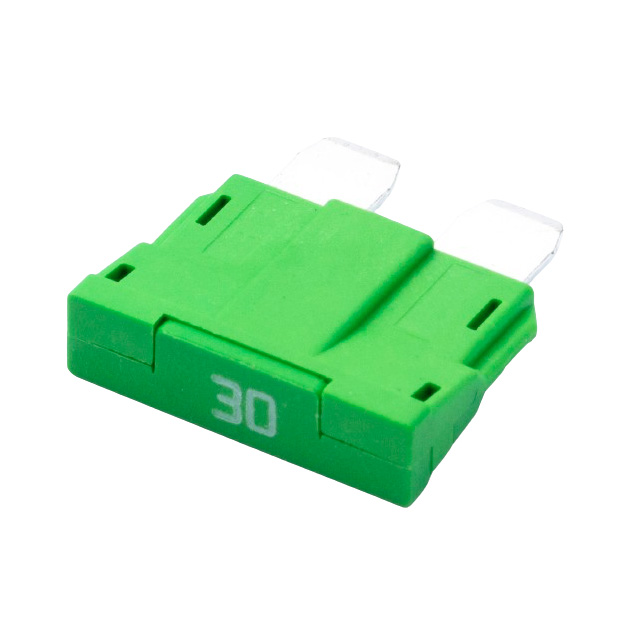

OptiFuse ANR80-UL-30A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Green	Blade ATO/ATC	Automotive	30 A	1 kA	80 V	Requires Holder	0.00165 Ohms	1530 I²t

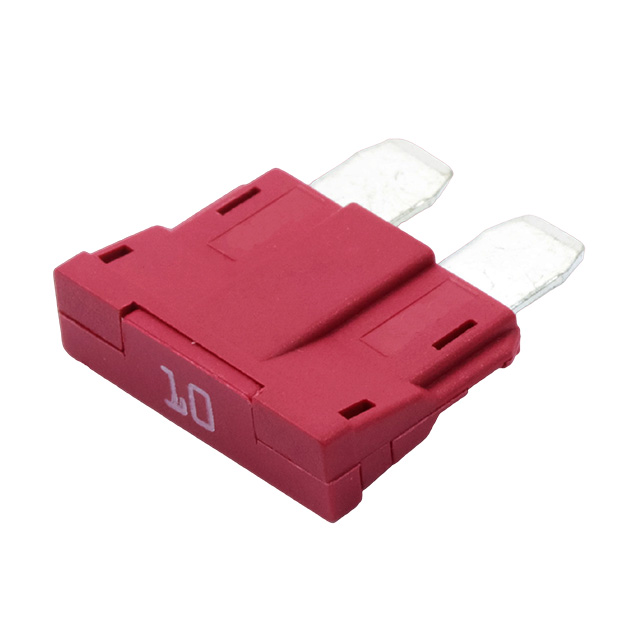

OptiFuse ANR80-10A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in		Red	Blade ATO/ATC	Automotive	10 A	1 kA	80 V	Requires Holder	0.0065 Ohms	210	210

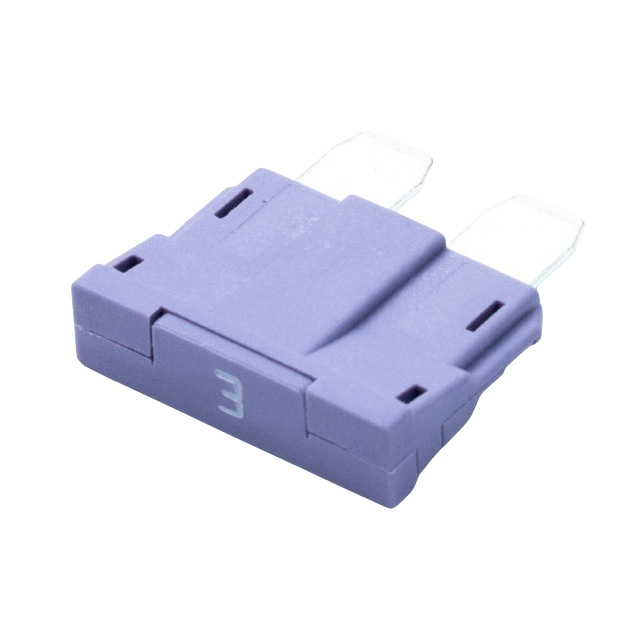

OptiFuse ANR80-UL-3A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Violet	Blade ATO/ATC	Automotive	3 A	1 kA	80 V	Requires Holder	0.03 Ohms

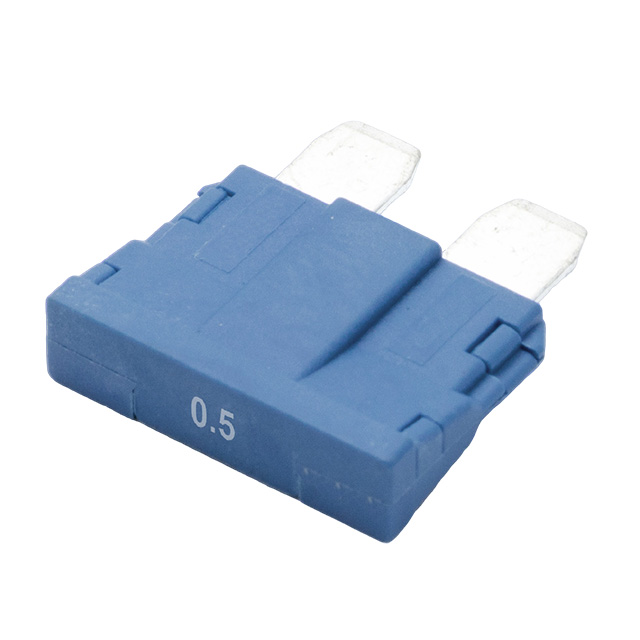

OptiFuse ANR80-UL-500MA	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Dark Blue	Blade ATO/ATC	Automotive	0.5 A	1 kA	80 V	Requires Holder	0.29 Ohms	0.3

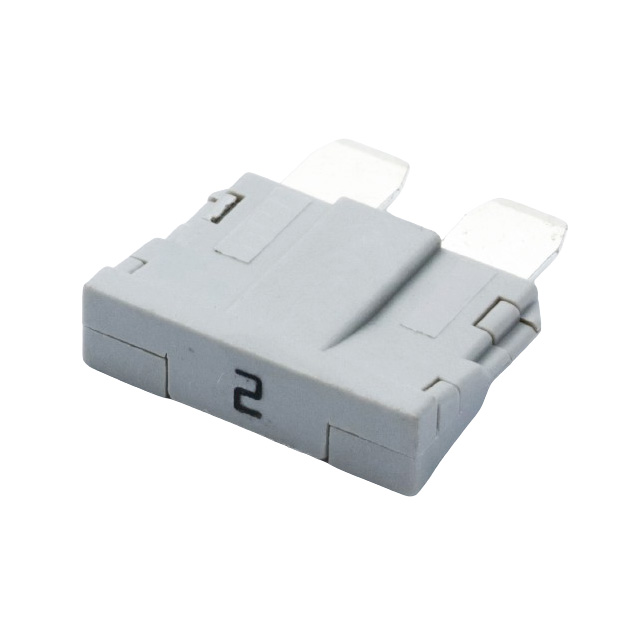

OptiFuse ANR80-UL-2A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Gray	Blade ATO/ATC	Automotive	2 A	1 kA	80 V	Requires Holder	0.043 Ohms	9.6 I²t

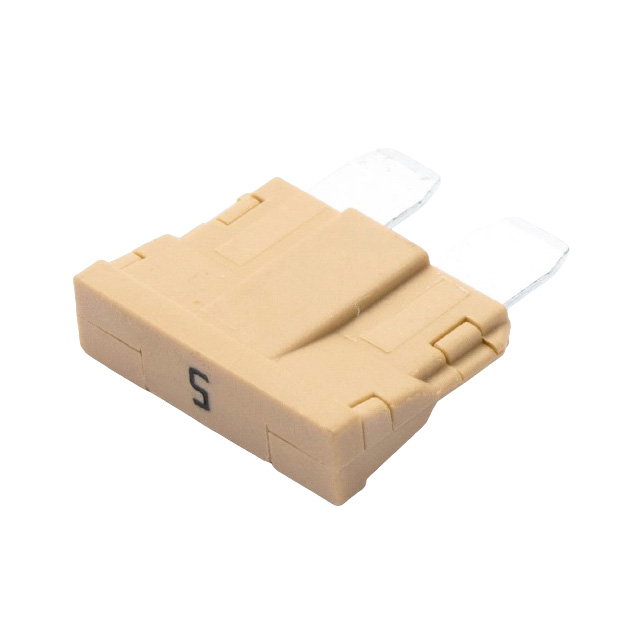

OptiFuse ANR80-UL-5A	Fast Blow	5 mm	0.197 "	13.5 mm	0.531 in	19 mm	0.748 in	cURus UL 248	Tan	Blade ATO/ATC	Automotive	5 A	1 kA	80 V	Requires Holder	0.016 Ohms	62.5
