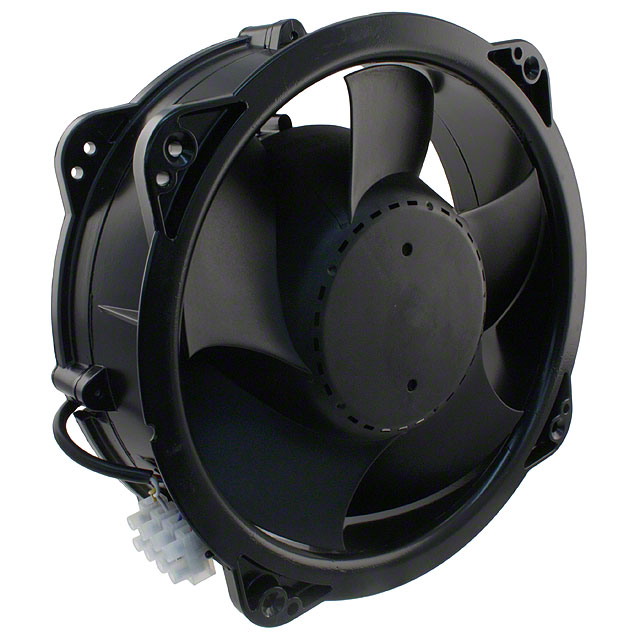

W1G208 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
FAN AXIAL 232X80MM 48VDC TERM
| Part | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Lifetime @ Temp. | Material - Blade | Width [y] | Power (Watts) | Weight | Weight | Voltage - Rated | Air Flow | Air Flow | Noise | Fan Type | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Approval Agency | RPM | Size / Dimension | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | 36 VDC | 57 VDC | Aluminum | 51000 Hrs | Plastic | 80 mm | 96 W | 2.3 kg | 5.1 lbs | 48 VDC | 17.3 m³/min | 618 CFM | 74 dB(A) | Tubeaxial | Ball | -25 °C | 162 °F | -25 °C | 72 °C | 2 | CCC CSA UL VDE | 3500 RPM | Round | 232 mm |
