SML-Z14 Series

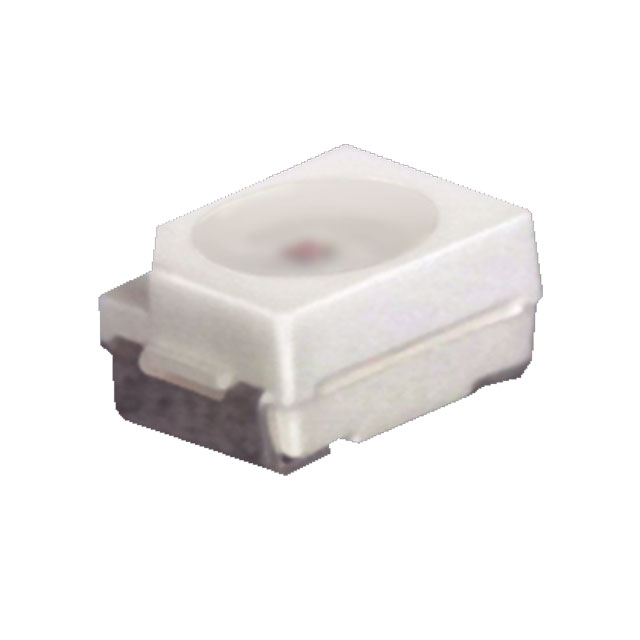

Automotive, High brightness reflector type, Yellow chip LED

Catalog

Automotive, High brightness reflector type, Yellow chip LED

Part	Size / Dimension [x]	Size / Dimension [y]	Voltage - Forward (Vf) (Typ)	Current - Test	Configuration	Mounting Type	Wavelength - Dominant	Supplier Device Package	Supplier Device Package	Lens Size [diameter]	Lens Color	Qualification	Millicandela Rating	Lens Style	Color	Grade	Package / Case	Package / Case	Height (Max) [z]	Lens Transparency	Height (Max) [Max] [z]	Supplier Device Package
Rohm Semiconductor SML-Z14PTT86C	3.5 mm	2.8 mm	2 V	20 mA	Standard	Surface Mount	560 nm	3528	1411	2.4 mm Dia	Colorless	AEC-Q101	22.4 mcd	Round with Flat Top	Green	Automotive	3528 Metric	1411	2.1 mm	Clear
Rohm Semiconductor SML-Z14PTT86A	3.2 mm	2.8 mm	2 V	20 mA	Standard	Surface Mount	560 nm			2.4 mm Dia	Colorless		22.4 mcd	Round with Flat Top	Green			2-PLCC		Clear	2.05 mm	2-PLCC
Rohm Semiconductor SML-Z14Y4TT86	3.2 mm	2.8 mm	2.1 V	50 mA	Standard	Surface Mount	590 nm			2.4 mm Dia	Colorless		710 mcd	Round with Flat Top	Yellow			2-PLCC		Clear	2.05 mm	2-PLCC
Rohm Semiconductor SML-Z14FTT86A	3.2 mm	2.8 mm	2 V	20 mA	Standard	Surface Mount	560 nm			2.4 mm Dia	Colorless		22.4 mcd	Round with Flat Top	Green			2-PLCC		Clear	2.05 mm	2-PLCC
Rohm Semiconductor SML-Z14MTT86C	3.5 mm	2.8 mm	2 V	20 mA	Standard	Surface Mount	571 nm	3528	1411	2.4 mm Dia	Colorless	AEC-Q101	90 mcd	Round with Flat Top	Yellow-Green	Automotive	3528 Metric	1411	2.1 mm	Clear
Rohm Semiconductor SML-Z14D4TT86	3.2 mm	2.8 mm	2 V	50 mA	Standard	Surface Mount	605 nm			2.4 mm Dia	Colorless		710 mcd	Round with Flat Top				2-PLCC		Clear	2.05 mm	2-PLCC
Rohm Semiconductor SML-Z14YTT86C	3.5 mm	2.8 mm	2 V	20 mA	Standard	Surface Mount	589 nm	3528	1411	2.4 mm Dia	Colorless	AEC-Q101	280 mcd	Round with Flat Top	Yellow	Automotive	3528 Metric	1411	2.1 mm	Clear
Rohm Semiconductor SML-Z14U4TT86	3.2 mm	2.8 mm	2 V	50 mA	Standard	Surface Mount	620 nm			2.4 mm Dia	Colorless		560 mcd	Round with Flat Top	Red			2-PLCC		Clear	2.05 mm	2-PLCC

Catalog

Automotive, High brightness reflector type, Yellow chip LED

Description

SML-Z1(C) series is an Automotive grade reflector high brightness surface mount type chip LED that complies with AEC-Q101.
