2314875 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

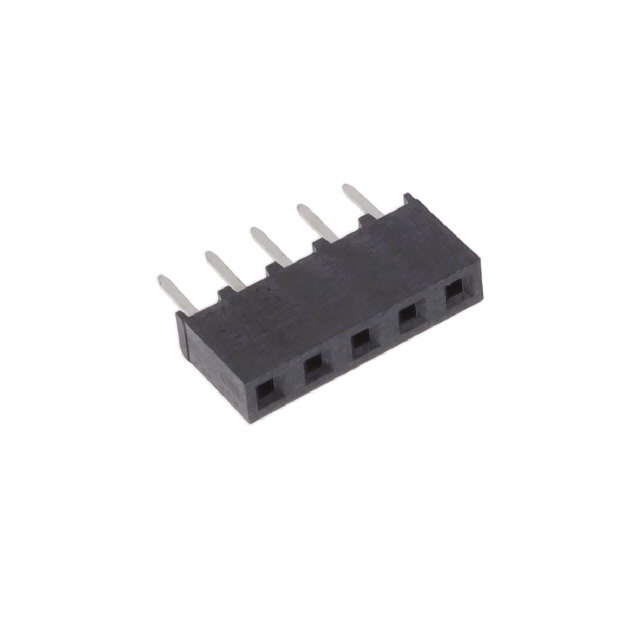

5P,2MM,BB,REC,SRVT,2.7,SN,TB
| Part | Number of Rows | Termination | Material Flammability Rating | Current Rating (Amps) | Insulation Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Number of Positions Loaded | Contact Length - Post [x] | Contact Length - Post [x] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Finish - Post | Insulation Height | Insulation Height | Contact Type | Connector Type | Pitch - Mating [x] | Pitch - Mating [x] | Insulation Material | Contact Shape | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 1 | Solder | UL94 V-0 | 2 A | Black | Phosphor Bronze | -40 °C | 105 ░C | 125 VDC | All | 0.106 in | 2.69 mm | 3 µm | 118.1 µin | Push-Pull | 118.1 µin | 3 µm | Tin | 0.177 in | 4.5 mm | Female Socket | Receptacle | 0.079 in | 2 mm | Liquid Crystal Polymer (LCP) | Square | Through Hole |
