0K Series
Manufacturer: LEMO
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
CIRCULAR PUSH PULL CONNECTORS LKP KEYG 4C CHR 3.5MM C
| Part | Fastening Type | Features | Shell Finish | Primary Material | Material Flammability Rating | Mounting Type | Contact Finish - Mating | Current Rating | Shielding | Ingress Protection IP Rating | Ingress Protection Description | Number of Positions | Cable Opening (Min) | Cable Opening (Max) | Shell Size - Insert | Shell Size - Insert | Connector Type | Termination | Orientation | Color | Operating Temperature (Min) | Operating Temperature (Max) | Shell Material | Mounting Feature | Contact Finish Thickness - Mating | Contact Material | Insert Material | Plating | Backshell Material | Applications | Material | For Use With/Related Products | Accessory Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Push-Pull | Backshell | Chrome | Metal | UL94 V-0 | Free Hanging (In-Line) | Gold | 7 A | Shielded | IP68 | Dust Tight Waterproof | 4 | 0.122 in | 0.138 in | 304 | 304 | Male Pins Plug | Crimp | G | Silver | -55 °C | 200 °C | Brass | |||||||||||
LEMO | Push-Pull | Chrome | Metal | UL94 V-0 | Panel Mount | Gold | 7 A | Shielded | IP66 IP68 | Dust Tight Water Resistant Waterproof | 4 | 304 | 304 | Female Sockets Receptacle | Crimp | G | Silver | -55 °C | 200 °C | Brass | Bulkhead Front Side Nut | 59 µin | Bronze | PEEK Polyetheretherketone | |||||||||
Push-Pull | Backshell | Chrome | Metal | UL94 V-0 | Free Hanging (In-Line) Right Angle | Gold | 7 A | Shielded | IP66 IP68 | Dust Tight Water Resistant Waterproof | 4 | 0.122 in | 0.138 in | 304 | 304 | Male Pins Plug | Solder Cup | G | Silver | -55 °C | 200 °C | Brass | 39.4 µin | Brass | PEEK Polyetheretherketone | Chrome | Brass | ||||||
Push-Pull | Backshell | Chrome | Metal | UL94 V-0 | Free Hanging (In-Line) Right Angle | Gold | 8 A | Shielded | IP66 IP68 | Dust Tight Water Resistant Waterproof | 3 | 0.102 in | 0.118 in | 303 | 303 | Male Pins Plug | Solder Cup | G | Silver | -55 °C | 200 °C | Brass | 39.4 µin | Brass | PEEK Polyetheretherketone | Chrome | Brass | ||||||
LEMO | Push-Pull | Potted | Chrome | Metal | UL94 V-0 | Panel Mount | Gold | 6.5 A | Shielded | IP68 | Dust Tight Waterproof | 5 | 305 | 305 | Female Sockets Receptacle | Solder Cup | G | Silver | -20 °C | 100 °C | Brass | Bulkhead Rear Side Nut | 59 µin | Bronze | PEEK Polyetheretherketone | Aviation Military | |||||||

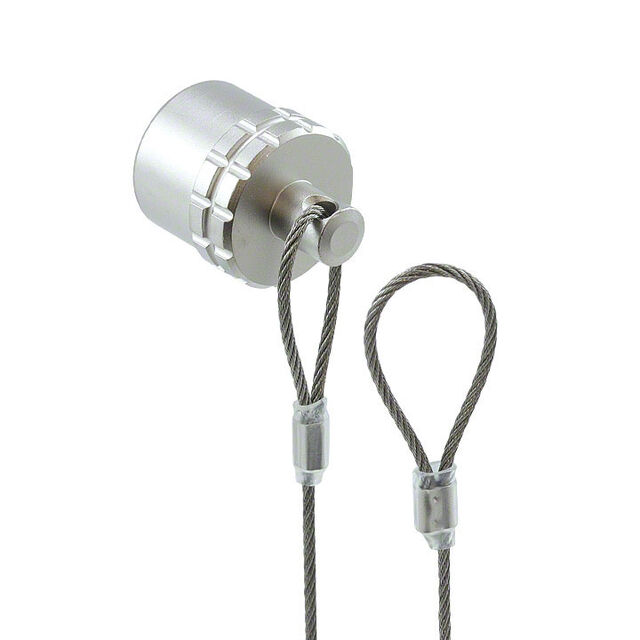

 LEMO | Dust Tight Lanyard Waterproof | Silver | Brass | 0K 0L Series Plug | Cap (Cover) | ||||||||||||||||||||||||||||
Push-Pull | Backshell | Chrome | Metal | UL94 V-0 | Free Hanging (In-Line) | Gold | 10 A | Shielded | IP66 IP68 | Dust Tight Water Resistant Waterproof | 2 | 0.142 in | 0.157 in | 302 | 302 | Female Sockets Plug | Solder Cup | L | Silver | -55 °C | 200 °C | Brass | 59 µin | Bronze | PEEK Polyetheretherketone | Chrome | Brass | ||||||

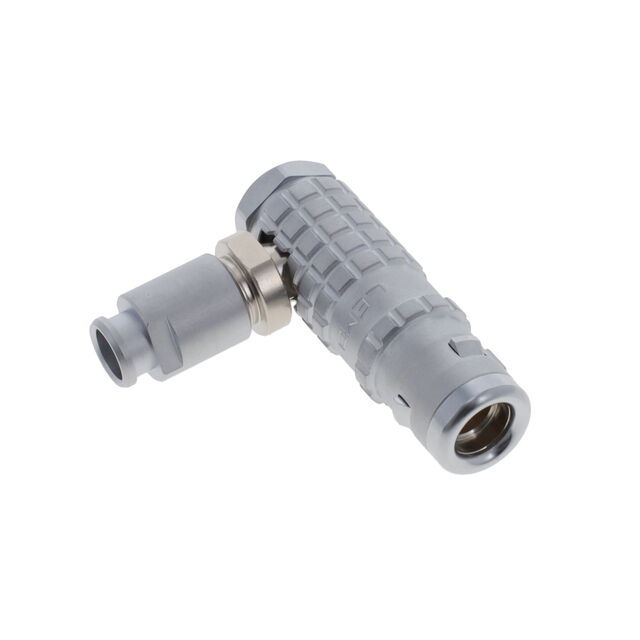

Push-Pull | Backshell | Chrome | Metal | UL94 V-0 | Free Hanging (In-Line) Right Angle | Gold | 2.5 A | Shielded | IP66 IP68 | Dust Tight Water Resistant Waterproof | 7 | 0.181 in | 0.197 in | 307 | 307 | Male Pins Plug | Solder Cup | G | Silver | -55 °C | 200 °C | Brass | 39.4 µin | Brass | PEEK Polyetheretherketone | Chrome | Brass |
