29676 Series
Manufacturer: Phoenix Contact
Beta
⌘K

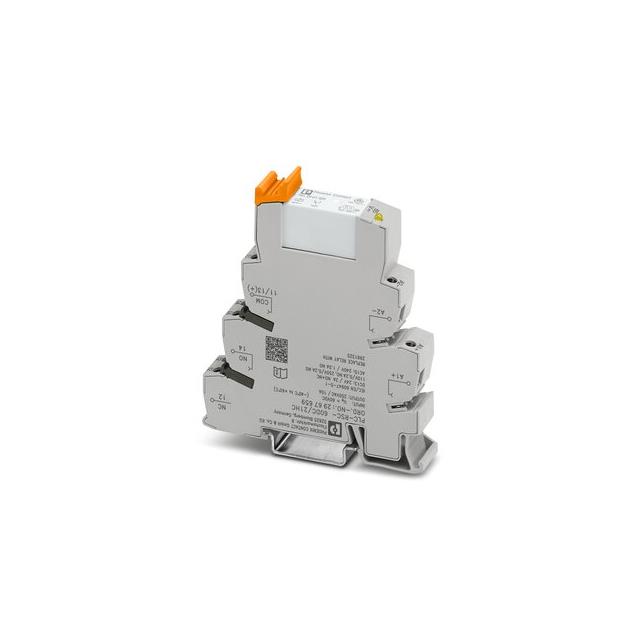

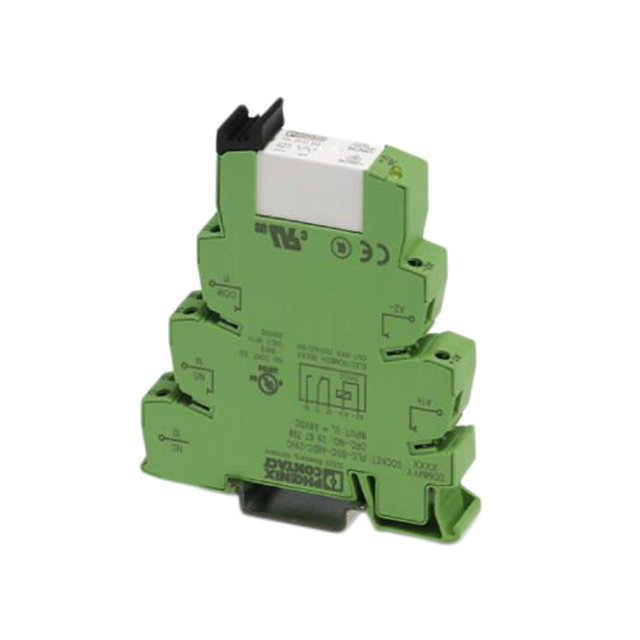

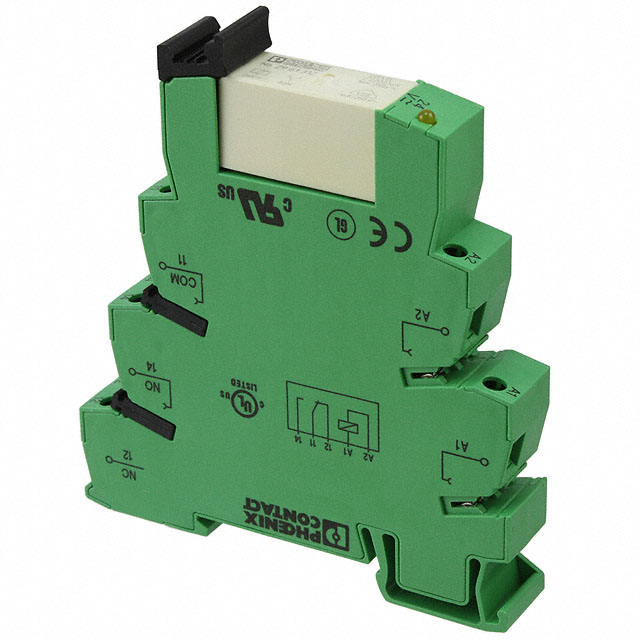

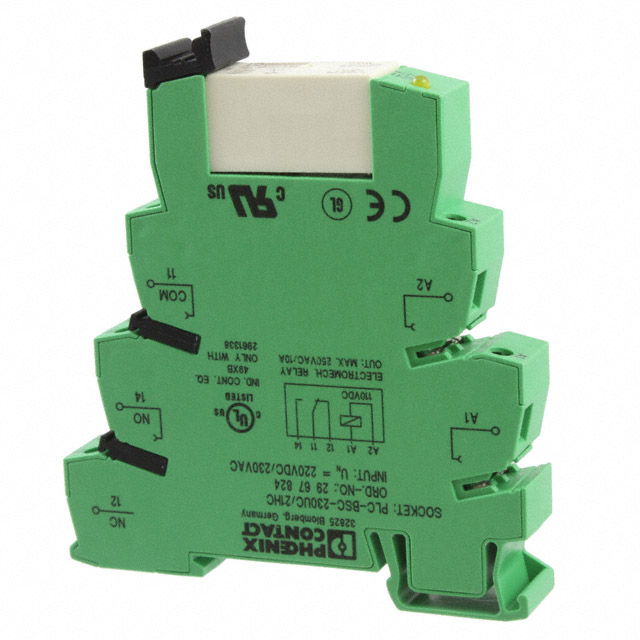

RELAY MODULE SCREW CONNECTION TERMINAL SPDT
| Part | Coil Resistance | Approval Agency | Relay Type | Operate Time | Contact Rating (Current) | Termination Style | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Coil Voltage | Release Time | Contact Material | Switching Voltage | Coil Current | Features | Coil Type | Mounting Type | Contact Form | Coil Voltage | Coil Voltage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | 51.1 kOhms | CE UKCA | General Purpose | 7 ms | 10 A | Screw Terminal | 55 °C | -40 C | 230 VDC | 230 VAC | 10 ms | Silver Nickel (AgNi) | 250 VAC 250 VDC | 4.5 mA | Lighted Indicator Socket Included | Non Latching | DIN Rail | SPDT (1 Form C) | ||
 Phoenix Contact | 26.66 kOhms | CE UKCA | General Purpose | 7 ms | 10 A | Screw Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 250 VAC 250 VDC | 4.5 mA | Lighted Indicator Socket Included | Non Latching | DIN Rail | SPDT (1 Form C) | 120VAC/DC | |||
 Phoenix Contact | 2.4 kOhms | CE UKCA | General Purpose | 8 ms | 10 A | Screw Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 250 VAC 250 VDC | 0.02 A | Diode Lighted Indicator Socket Included | Non Latching | DIN Rail | SPDT (1 Form C) | 48 VDC | |||
 Phoenix Contact | 6 kOhms | CE UKCA | General Purpose | 8 ms | 10 A | Screw Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 250 VAC 250 VDC | 10 mA | Diode Lighted Indicator Socket Included | Non Latching | DIN Rail | SPDT (1 Form C) | 60 VDC | |||
 Phoenix Contact | 1371 Ohms | CE UKCA | General Purpose | 8 ms | 10 A | Screw Terminal | 60 °C | -40 C | 10 ms | Silver Nickel (AgNi) | 250 VAC 250 VDC | 17.5 mA | Lighted Indicator Socket Included | Non Latching | DIN Rail | SPDT (1 Form C) | 24 VAC |
