PPPC332 Series

Catalog

CONN HDR 66POS 0.1 GOLD PCB R/A

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Connector Type	Voltage Rating	Number of Positions	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Contact Finish - Mating	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Color	Current Rating (Amps)	Mounting Type	Material Flammability Rating	Contact Type	Fastening Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post [x]	Contact Length - Post [x]
Sullins Connector Solutions PPPC332LJBN	Polyester	Phosphor Bronze	Square	Flash	Header	250 V	66	Gold	0.2 in	5.08 mm	0.1 "	2.54 mm	All	Flash	-40 C	105 ░C	Solder	Gold	2	0.124 in	3.15 mm	Black	3 A	Right Angle Through Hole	UL94 V-0	Female Socket	Push-Pull	0.1 in	2.54 mm

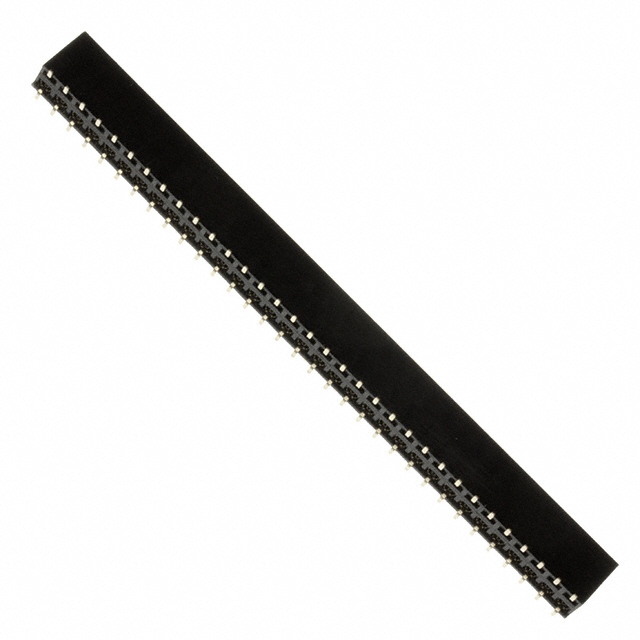

Sullins Connector Solutions PPPC332KFMS	Polyester	Phosphor Bronze	Square	Flash	Header	250 V	66	Gold	0.299 "		0.1 "	2.54 mm	All	Flash	-40 C	125 °C	Solder	Gold	2			Black	3 A	Surface Mount	UL94 V-0	Female Socket	Push-Pull	0.1 in	2.54 mm	7.6 mm

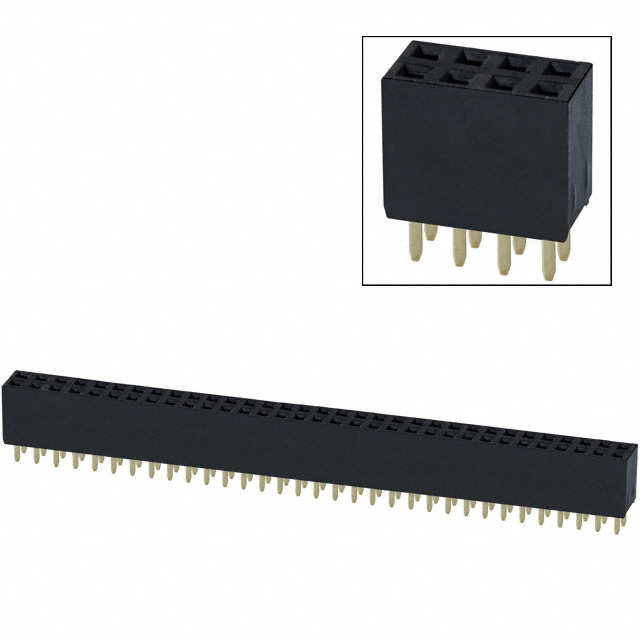

Sullins Connector Solutions PPPC332LFBN	Polyester	Phosphor Bronze	Square	Flash	Header	250 V	66	Gold			0.1 "	2.54 mm	All	Flash	-40 C	105 ░C	Solder	Gold	2			Black	3 A	Through Hole	UL94 V-0	Female Socket	Push-Pull	0.1 in	2.54 mm	8.51 mm	0.335 "	0.126 "	3.2 mm
