LM1770 Series

Low-Voltage SOT23 Synchronous Buck Controller With No External Compensation

Catalog

Low-Voltage SOT23 Synchronous Buck Controller With No External Compensation

Part	Voltage - Input [Min]	Voltage - Input [Max]	Regulator Topology	Main Purpose	Voltage - Output	Frequency - Switching	Supplied Contents	Current - Output	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Frequency - Switching [Max]	Frequency - Switching [Min]	Function	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Output Configuration	Output Type	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Output Phases	Package / Case	Number of Outputs	Supplier Device Package	Mounting Type

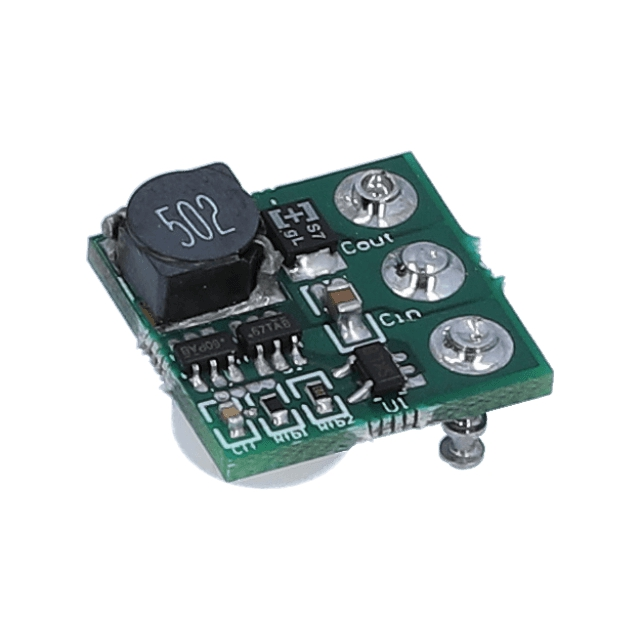

Texas Instruments LM1770EVAL	2.8 V	5.5 V	Buck	DC/DC Step Down	2.5 V	378 kHz	Board(s)	2 A	Non-Isolated	1	Fully Populated	LM1770
Texas Instruments LM1770UMF/NOPB													1 MHz	100 kHz	Step-Down	-40 °C	125 ¯C	Buck	Positive	Transistor Driver	5.5 V	2.8 V	1	SC-74A SOT-753	1	SOT-23-5	Surface Mount
Texas Instruments LM1770SMF/NOPB													1 MHz	100 kHz	Step-Down	-40 °C	125 ¯C	Buck	Positive	Transistor Driver	5.5 V	2.8 V	1	SC-74A SOT-753	1	SOT-23-5	Surface Mount
Texas Instruments LM1770SMFX/NOPB													1 MHz	100 kHz	Step-Down	-40 °C	125 ¯C	Buck	Positive	Transistor Driver	5.5 V	2.8 V	1	SC-74A SOT-753	1	SOT-23-5	Surface Mount
Texas Instruments LM1770TMF/NOPB													1 MHz	100 kHz	Step-Down	-40 °C	125 ¯C	Buck	Positive	Transistor Driver	5.5 V	2.8 V	1	SC-74A SOT-753	1	SOT-23-5	Surface Mount

Catalog

Low-Voltage SOT23 Synchronous Buck Controller With No External Compensation

Key Features

• Input Voltage Range of 2.8V to 5.5V0.8V Reference VoltageNo Compensation RequiredConstant Frequency Across Input RangeLow Quiescent Current of 400µAInternal Soft-startShort Circuit Protection5-Pin SOT-23 PackageAll trademarks are the property of their respective owners.Input Voltage Range of 2.8V to 5.5V0.8V Reference VoltageNo Compensation RequiredConstant Frequency Across Input RangeLow Quiescent Current of 400µAInternal Soft-startShort Circuit Protection5-Pin SOT-23 PackageAll trademarks are the property of their respective owners.

Description
