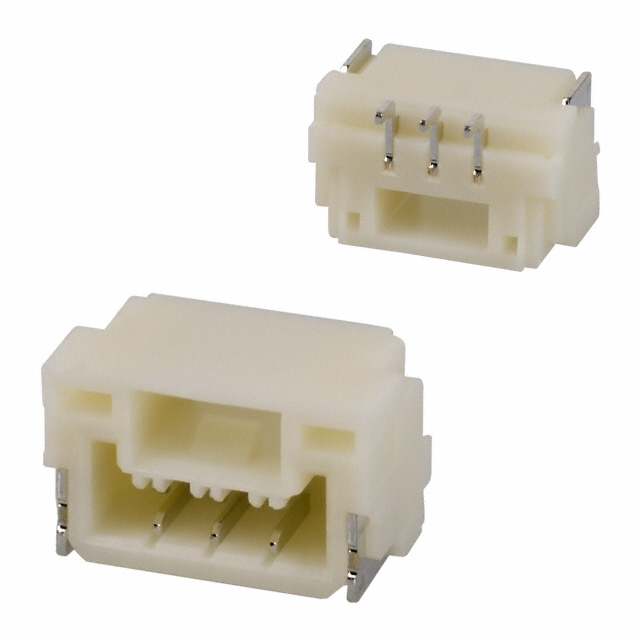

SM03B-GH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN HEADER SMD R/A 3POS 1.25MM
| Part | Insulation Height | Insulation Height | Fastening Type | Features | Contact Type | Operating Temperature [Max] | Operating Temperature [Min] | Insulation Color | Mounting Type | Pitch - Mating | Pitch - Mating | Number of Rows | Contact Material | Shrouding | Material Flammability Rating | Voltage Rating | Insulation Material | Contact Finish - Post | Connector Type | Contact Shape | Style | Termination | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 4.25 mm | 0.167 " | Locking Ramp | Solder Retention | Outer Shroud Contact | 85 °C | -25 °C | Natural | Right Angle Surface Mount | 0.049 in | 1.25 mm | 1 | Phosphor Bronze | Shrouded - 4 Wall | UL94 V-0 | 50 V | Nylon 9T Polyamide (PA9T) | Tin | Header | Rectangular | Board to Cable/Wire | Solder | All |
