USB1020 Series
Manufacturer: GCT
Beta
⌘K

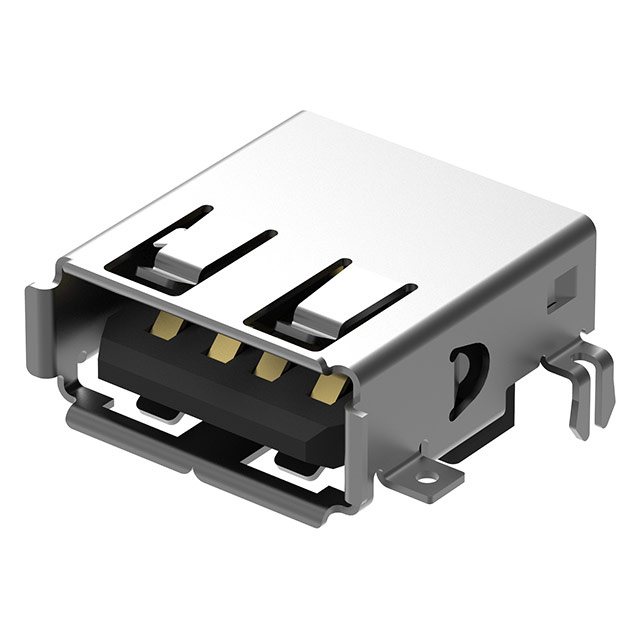

USB A SKT, BOTTOM TH, R/A, GF, O
| Part | Contact Finish | Insulation Color | Shell/Shielding Material | Material Flammability Rating | Mounting Feature | Gender | Current Rating (Amps) | Termination | Mating Cycles | Shielding | Features | Connector Type | Number of Contacts | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Voltage - Rated | Specifications | Number of Ports |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Gold | Black | Brass | UL94 V-0 | Bottom Mount Horizontal Mid Mount | Receptacle | 1.5 A | Solder | 1500 | Shielded | Board Lock Solder Retention | USB-A (USB TYPE-A) | 4 | 85 °C | -40 C | Board Edge Cutout Through Hole Right Angle | 30 V | USB 2.0 | 1 |
