745967 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

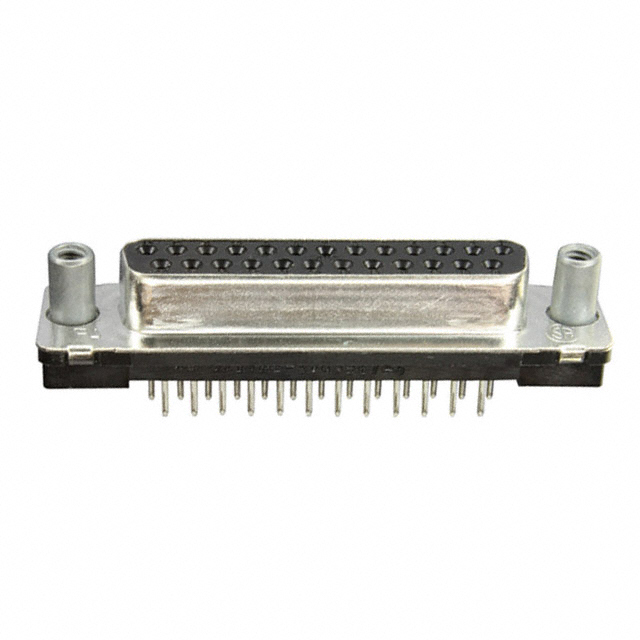

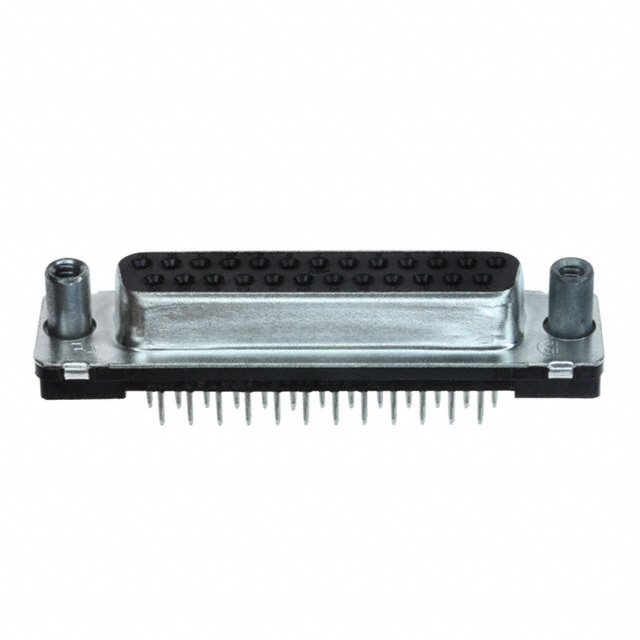

CONN D-SUB RCPT 25POS VERT SLDR
| Part | Contact Material | Color | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Connector Type | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Finish | Connector Style | Mounting Type | Termination | Contact Type | Number of Rows [custom] | Number of Positions | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | Polyester | -55 C | 105 ░C | 125 VDC | UL94 V-0 | B DB | 3 | Receptacle Female Sockets | 6 A | 30 Áin | 0.76 Ám | 4-40 Mating Side Female Screwlock | Gold | D-Sub | Through Hole | Solder | Signal | 2 | 25 | |
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | Polyester | -55 C | 105 ░C | 125 VDC | UL94 V-0 | B DB | 3 | Receptacle Female Sockets | 6 A | 4-40 Mating Side Female Screwlock | Gold | D-Sub | Through Hole | Solder | Signal | 2 | 25 | Flash | ||
 TE Connectivity AMP Connectors | Phosphor Bronze | Black | Polyester | -55 C | 105 ░C | 125 VDC | UL94 V-0 | B DB | 3 | Receptacle Female Sockets | 6 A | 30 Áin | 0.76 Ám | Housing/Shell (Unthreaded) | Gold | D-Sub | Through Hole | Solder | Signal | 2 | 25 |
